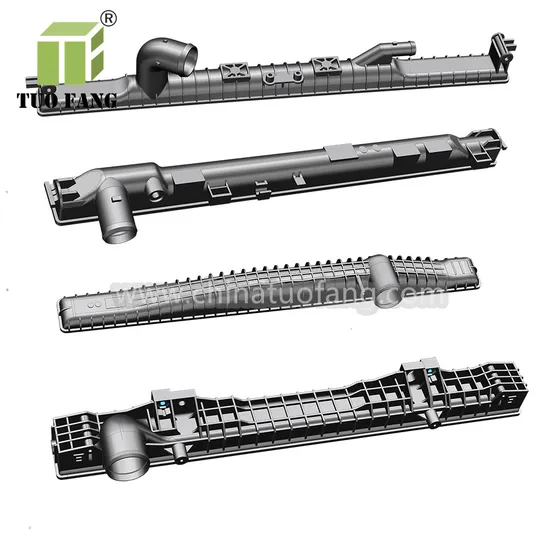

Heavy Truck Radiator Water Tank Mould PA66+30%GF Automotive Cooling Mould

US$13,000.00-25,000.00 1 Set (MOQ)

Basic Info.

Surface Finish Process
Polishing
Mould Cavity
Single Cavity
Plastic Material
PA66+GF
Process Combination Type
Single-Process Mode
Application
Car
Runner
Hot Runner
Design Software
UG
Installation
Fixed
Standard
DME
Customized
Customized
Mould Steel
718
Transport Package
Polywood Case
Origin
Taizhou China
HS Code
8480719090

Product Description

Product Description
Product Name heavy truck radiator water tank mould automotive cooling mould
Model Number Customized
Shaping Model Plastic Injection Mould
Product Material Steel
Mould material P20/718H (or According to your requirements)
Mould life 300000-1000000shots
Mould base C45
Design software UG NX AUTO CAD
Cavity 1
Surface treatment Polishing/ Texture
Runner Hot Runner
Packaging Details polywooden case
Port Ningbo
Lead Time 60days

Detailed Photos

Manufacturing flow of mould
1 RFQ Get the sample or drawing from customer, analyze and quote as per customer requests, make DFM, give some professional suggestions to help customer improve the product
2 Negotiation Discuss about the mould steel, delivery time, payment term and so on
3 Place an order Customer confirms the plastic material, injection machine spec and other details, we start make the design
4 Mould design Make the mould design on the basis of confirmed product design, accordingly customer machine spec and other requests.
5 Mould tooling Start the mould tooling after mould design confirmed.(Cut steel, CNC machining, polishing, testing.)
6 Mould processing Mould process photo or video update to customer each 10 days
7 Test sample T1: checking if mould working corrects, if the dimension, weight, wall thickness meet customer request. If everything ok, send the sample to customer approve
8 Delivery Once sample approved, we check eavey detials of mould, make sure the mould work well, than will ship the moulds within 7 days after get customer ship
9 Shipping By Sea- Nearest port: Ningbo or Shanghai, By Air- Nearest port: Shanghai or Hangzhou

Packaging & Shipping
Shipping prepare
We will prepare the some wear parts, like spring, ejector pins, cooling conector, eyeblot.pack with the mould
1.Check mould component
2.Cleaning mould cavity/core and spread slushing oil on the mould
3.Cleaning mould surface and spread slushing oil on the mould surface
4.Put into the wooden case
5. Transport by container

Company Profile
Taizhou Tuofang Plastic Mould Co.,Ltd is located in HuangYan Taizhou city which is known as "The Mould City". Tuofang company is specialized in designing and manufacturing Plastic Injection Moulds which is including;
Automotive mould: car radiator water tank mould , car fan mould and fan shroud mould, car grille mould, auto lamp mould etc.
Commodity Mould: households product mould, kitchenware mould, crate mould, paint bucket mould, garden product mould etc.
Home Appliances(electricals) Mould: air cooler mould, washing machine, Fan mould etc.
Other Plastic Injection Mould: Motorcycle parts mould, Industrial plastic parts mould

Our Advantages
1. Approved Quality
2. On-Time Delivery
3. Reasonable Price
4.Experienced Staffs
5. Reliable Post-Service
6. Good Reputation
7 .Experienced team for part & mould design
8.Precise dimension control
9.On-titme delivery
10.One year warranty
Our Exhibition

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:How to go to your factory?
You can come to us by flight, bus and bullet train. It's 1.5 hours by flight from Guangzhou to our city. 3 hours by bullet train from Shanghai to our city. 1 hour by bullet train from Ningbo to us.
Q: How long is your delivery time?
A: Generally it is 40-60 days for 1st sample. or it is 60-90 days for big moulds
Q: Do you provide samples ? is it free or extra ?
A: Yes, we will send the mould testing smaple to customer, and will part two time freight fee.
Q: What is your terms of payment ?
A: 50% T/T in advance ,balance before shippment.
Q: Where is your factory located?
A: Our factory is located in Huangyan, Taizhou city, Zhejiang Province, China.One hour from Taizhou airport by car, 20 minutes from train station to our factory.
Q. When can I get the price?
A: We usually quote within 48 hours after we get your inquiry. For the urgent inquiry please let us know, we will quote to you within 24 houus
Q. I have no 3D drawing, how should I start the new project?
A: We very welcome you give us the samples, we will help you finish the 3D drawing design.
Q. If i provide you 3d drawing of my product, can you quote the price & make the mould as per the 3d drawing?
A:Yes. DWG, DXF, STEP, IGS and X_T files can all be used to quote price, make mould as per your models
