Basic Info.
Certification
ISO 9001:2008, CE, SGS, TUV
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Machine Type
Beading Machine
Raw Material
Sheet / Plate Rolling
Material
Iron and Metal Sheet
Certificaton
Ce and ISO9001 and SGS
Place of Origin
Jiangsu, China
Specification
2500*1500*2000mm
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
470.00cm * 300.00cm * 240.00cm
Package Gross Weight
4000.000kg
Product Description
Products Description

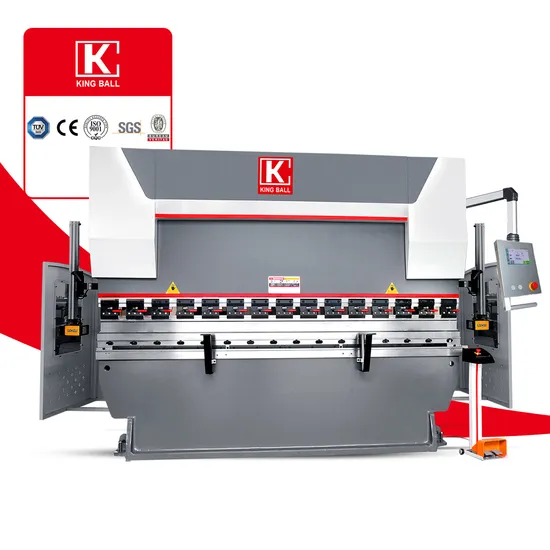

Torsion bar Synchronous CNC Press Brake | KCN-6325 | | |
Capacity | kN | 630 | | |
Max. Bending Length | mm | 2500 | | |
Between Columns | mm | 2100 | | |
Max. Shut Height | mm | 350 | | |
Slide Stroke | mm | 120 | | |
Throat Depth | mm | 250 | | |
Down Speed | mm/min | 120 | | |
Pressing Speed | mm/min | 10 | | |
Return Speed | mm/min | 90 | | |
Main Motor Power | kW | 5.5 | | |
X axis stroke | mm | 500 | | |
X axis speed | mm/s | 300 | | |
Outline Size | L | mm | 3000 | | |
| W | mm | 1500 | | |
| H | mm | 2200 | | |
Weight | kg | 4000 | | |
Details Images
KCN Series Torsion bar Synchronous CNC Press BrakeMain functions and featuresOverall welded and processed structure.
Mechanical stop and steel torsion bar to maintain synchronization and high precision.
Movement of backgauge and ram stroke is servo controlled by CT8 Controller
The function of angle programming of CT8 Controller will bring high bending efficiency.
X axes is controlled by servo motor, with strong synchronous belt,with high control accuracy,fast positioning and low noise.
With high-precision cnc moulds/dies and quick clamps,it will be more accurate and durable when bending plates,high efficiency when removing and changing upper punch tools.
With imported hydraulic system,stable and high precision when persistent working.
Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.Main motor Siemens main motor German brand. Sunny pump USA brand. Rexroth valve German brand. Laser safety protectionDSP Laser safety device protects the press brake operator from the danger of crushing between the moving and fixed part of the
machine.
DSP Laser safety device is mounted on the moving part of the machine, and the protection zone moves with the part. When an
obstacle is detected, such as an operators fingers, detection is immediate and the machine can be stopped.
Our ServicePre-sales services:1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery overseas
Contact WaysMr.Pumbaa YangCustomer ManagerE-mail:pumbaa@jinqiu.cc
FAQ
1.Can you supply the relevant documentation?Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days.For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.
>>
