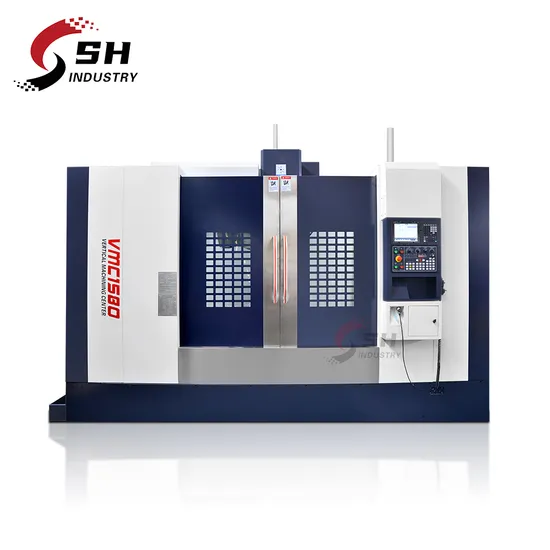

Vmc1580 Heavy Duty CNC Machining Center Vertical CNC Milling Machine

US$50,000.00-80,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC1580
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Product Name
Vmc1580 Heavy Duty CNC Machining Center Vertical C
T-Slot
5-22-135
Max Loading Capacity of Table
1500
Spindle Taper
Bt40
Spindle Speed
6000
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8457101000
Production Capacity
200

Packaging & Delivery

Package Size
240.00cm * 200.00cm * 255.00cm
Package Gross Weight
15000.000kg

Product Description

VMC1580 Heavy Duty CNC Machining Center Vertical CNC Milling Machine
Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Auto lubrication system
Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
Main technical specifications:
Working table Table size 1700x800
T-slot 5-22-135
Max loading capacity of table 1500kg
Spindle Spindle taper BT40/50
Spindle speed 6000/8000rpm
Spindle power 11/15KW
Travel X,Y,Z axis travel 1500X800X700
Distance from spindle nose to table BT50-155: 155-855
BT40-150: 190-890
Distance from spindle center to vertical guide way surface 855mm
Feed Rapid movement speed X,Y,Z 30/30/30
Feed rate of cutting X,Y,Z 1~10000mm/min
Three axis X Y Z axis motor torque 10/10/15NM
X Y Z axis linear guide rail width 55mm
X Y Z lead screw size 50
X Y Z sliding block no 4/4/4
Tools capacity Tools capacity 24T/16
Max tool weight 8kg
Max length φ78/300mm
Tool magazine type Arm type
Precision Positioning accuracy X/Y/Z ±0.005mm
Repeated positioning accuracyX/Y/Z ±0.003mm
Machine tool Machine size 2400x2000x2550mm
Casting material model HT300
Machine hardness 45-50rkc
Machine weight 15000kg

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
