Kexint ADSS Gyxftw Aramid Yarn FRP Fiber Optic Armoured Central Tube Cable

US$156.69
10-99 kilometers
US$155.78
100-999 kilometers
US$153.21
1,000+ kilometers

Basic Info.

Model NO.
GJYFXTH
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
Multicore
Certification
RoHS, CE, ISO9001, VDE, CCC, CE/RoHS/ISO9001
Brand
OEM
Sheath Material
PVC
Sheath Color
Black
Length Per Roll
2km
Fiber Brand
Corning/Yofc/Fiberhome
Cable Diameter
8.5mm
Warranty Time
3 Years
Fiber Count
1~12 Core
Fiber Type
G652D or B3
Number of Conductors
2
Transport Package
Carton
Trademark
KEXINT
Origin
Guangdong, China
HS Code
8544700000
Production Capacity
5000 Kilometers/Week

Packaging & Delivery

Package Size
925.00cm * 705.00cm * 925.00cm
Package Gross Weight
305.000kg

Product Description

Products Description

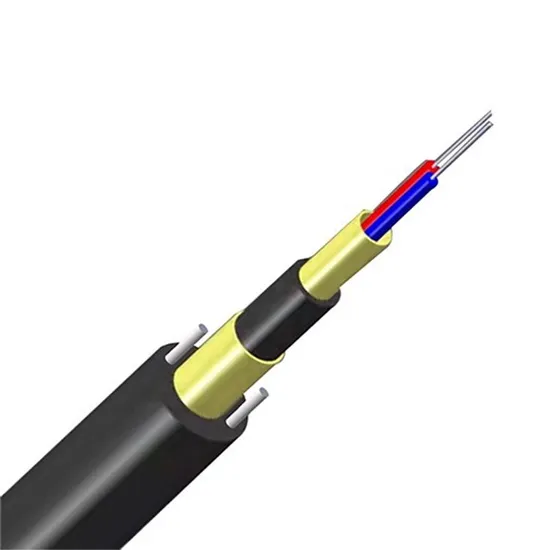

Advantages of neutral bundled tube ADSS optical cable: 1. Compared with the traditional ADSS optical cable, the optical cable has a central bundle tube structure, and the structure is simple. 2. The outer diameter of the optical cable is small (the same number of cores), the optical cable is light, and the construction cost is low. 3. The production process is simple and the material used is less, so the price of the optical cable is low. Product Description: 1.Good mechanical property and environment property z Flame. 2.resistant performance. 3. Soft, agility, convenience for connection. Applications: 1. The manufacturing process of FRP + aramid fiber makes the optical cable have a good tensile capacity, which can be used in the construction c. nvironment of the optical cable with an overhead span of 50~150 meters. 2. The entire optical cable is made of non-metallic materials, will not conduct electricity, has lightning protection, and can be used in overhead. Cable description Optical fibers are positioned in a loose tube made of PBT. PE outer sheath. The tubes are filled with a water resistant filling compound. The tube is covered with FRP and aramid fiber as strength member. Fiber color
No. 1 2 3 4 5 6
Color Blue Orange / / / /
Tube color
No. 1
Color Natural
Structure parameter
Item Contents Unit Value
Fiber count Number / 1~12
Fiber model / G657A2
Max.fibers per tube Count / 12
loose tube diameter mm 2.0
loose tube thickness mm 0.32
Strength member Material 1 / 2*1.6/1.8/2.0/2.5 FRP
Material 2 / 1670*3 Aramid fiber
Outer sheath Color / Black
Material / PE
Cable diameter ±5% mm 8.5±0.1
Cable weight ±10% kg/km 43.5
Mechanical & Environmental Performance
Item Contents Value
Max. tensile load Short term 1300N
Max. crush resistance Short term 2200N
Min. bending radius Installation 15 x cable diameter
Operation 10 x cable diameter
Temperature range Operation -20 ~ +70
Optical fiber
Item Unit Specification
G. 657A2
Mode field diameter 1310nm mm 9.2 ± 0.4
1550nm mm 10.4 ± 0.5
Cladding diameter mm 125.0 ± 0.7
Cladding non-circularity % 1.0
Core concentricity error mm 0.5
Coating diameter mm 242 ± 7
Coating/cladding concentricity error mm 12
Cable cut-off wavelength nm 1260
Attenuation Coefficient 1310nm dB/km 0.35
1550nm dB/km 0.21
Macro-bend loss (1 turn, 10mm radius) 1550nm dB/km 0.75
1625nm dB/km 1.5
Proof stress level kpsi ≥100
Our advantages:
1. Good reply: Your inquiry related to our products or price will be replied within 24 hours.
2. OEM&ODM: We can help you to design or put your logo and company name into products.
3. Remote Technical support&Full Technical Document
4. Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)
5. English software, English Indicator
6. Professional, Very competitive price
7. Large Stock, Fast Delivery Company Profile
