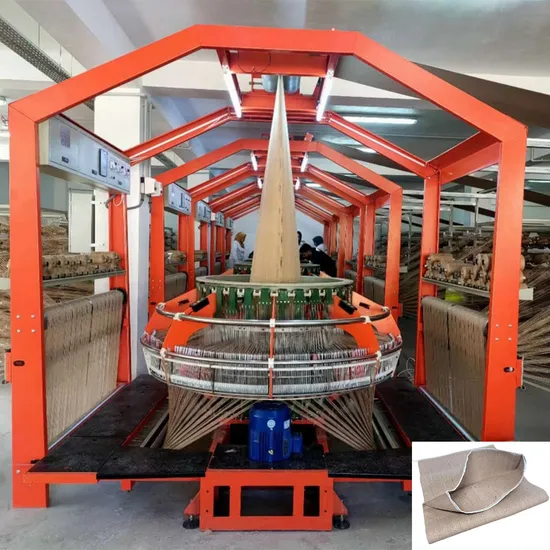

High Quality Jute Bag Making Machine Production Line for Packing Cocoa

Product Description

Product Description
Application
To weave PP/HDPE fabric for jute sack bag for packing coffee bean, grain, vegetable, rice, fruit, etc.
Technical Data

S/N.	Items	Parameters
1)	Model:	YX-K740/4
2)	Shuttle	4 Shuttles
3)	Revolutions Speed	40-100 r/minute
4)	Number Of Warp Creels	512 pcs
5)	Lay-Flat Width Of Cloth	500-740mm
6)	Weft Density	as require
7)	Specification Of Bobbin	38X230mm
8)	Driving Main Motor & Control	3.5Kw, AC Motor, Inverter Control
9)	Tape Break & Empty Detecting	Photoelectric and magnetic Sensor
10)	Installing Dimensions(L*W*H)	11.5*2.4*2.8m
11)	Weight(kg)	2500
12)	Production capacity	40-50 m/hour,it depend on the final yarn width

Remark
* The data depends on weaving construction, size and weight of fabric, specification and quality of tape.
** Specification and dimensions are subject to change without prior notice.
*** Special specification and versions on request.
Pingyang Yongxu Packaging CO.,LTD Founded in 2010 at Xiaojiang Town, Wenzhou City, Zhejiang Province, China,
We are professional for complete line of PP Woven bag making machines such as Cement Woven Bag Making Machine, ,Rice Woven Bag
Making Machine, fertilizer Woven Bag Making Machine, Grain Woven Bag Making Machine, corn Woven Bag Making Machine, soybean Woven bag making machines, sesame Woven Bag Making Machine, Jumbo Woven Bag Making Machine, FIBC Woven Bag Making Machine, and Mesh Bag Making Machine, Leno Bag Making Machine, Plastic Rope Making Machine as well.We also make PP Woven bag Production Line such as Cement Woven Bag Production Line, Rice Woven Bag Production Line, fertilizer Woven Bag Production Line, Grain Woven Bag Production Line, corn Woven Bag Production Line, soybean Woven bag Production Line, sesame Woven Bag Production Line, Jumbo Woven Bag Production Line, FIBC Woven Bag Production Line, and Mesh Bag Production Line, Leno Bag Production Line, Plastic Rope Production Line.
It is a specialized manufacturer of series of whole set plastic machinery products such as Complete Line of Woven Bag Making Machines, PP Mesh/Leno Bag/FIBC Woven Bag/Container Bag/Cement Bag/Rice Bag Making Machine,Plastic Bag Making Machine, Plastic Rope Making Machine. Having passed ISO9001:2000 International Quality System authentification and got CE Certificate.

Detailed Photos
How to make PP woven sack
Certifications
Work shop
Shipping & Customer Visiting

---
