Cost-Effective, High-Stability Bluetooth Module TS-M1030D

Product Details

Product Description

Product Description

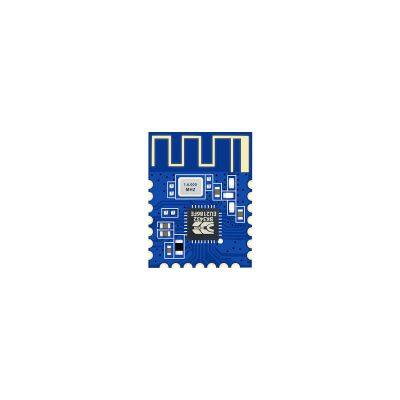

The TS-M1030D is a compact Bluetooth Low Energy (BLE) Bluetooth module, featuring a Bluetooth 5.0 chip and support for BLE4.2 and BLE+SPP dual-mode protocols. It also supports AT commands, allowing users to modify parameters such as serial port baud rate and device name. Additionally, the data control module’s I/O ports can be directly accessed via an app for flexible and straightforward operation. This module offers outstanding stability, ultra-low cost, minimal power consumption, and high receiving sensitivity.
Model No.: TS-M1030D
Features
Bluetooth Version: BLE 4.2+SPP 3.0
Frequency Band: 2.402GHz-2.480GHz ISM band
TX Power: -20dBm~+4dBm
Receive Sensitivity: -97dBm
Air Rate: 250Kbps/1Mbps/2Mbps
Antenna: PCB Onboard
Advise Range: 80m
Memory: 160KB FLASH+20KB RAM
Size: 17*13*1.5mm
Pin/GPIO: 21/16
Power Supply: 1.8~3.6V
Operating Temperature: -40℃~+85℃
Peripheral Interface: UART/SPI/I2C/ADC
Serial Transparent Transmission Rate: BLE 4KB/s, SPP 16KB/s
Applications
Smart home
Location tracking
Intelligent educational equipment
Measurement and monitoring system
Industrial sensors and controls
Medical equipment monitoring and wireless control

---
