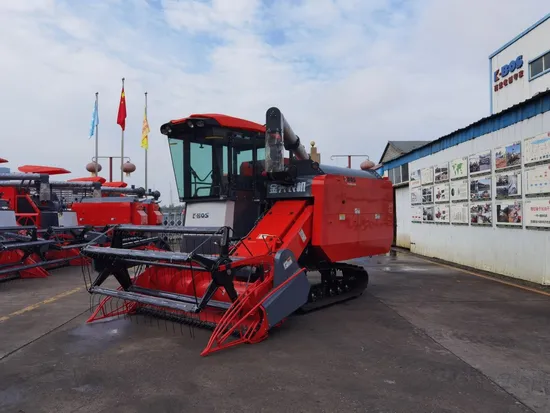

Dy K-Bos 100HP/110HP/120HP AC Cabin Model 4lz-6.0z Combine Harvester for Corn/Maize/Soybean/Rapeseeds

Product Description

Product Description
Deyang K-BOS Model 4LZ-6.0Z is with the highest chassis combine harvester in China, it is specially designed for deep mud field paddy, this model has been experienced diffirent paddy condition and diffirent field condition over 29 countries and over 10 years. It is of very mature and strong combine harvester.
Equipments:Four Cylinder diesel engine,Power range from 100HP to 120HP. 95 Gearbox, 55CC HST, 500mm Width Rubber Track, With Automatic Reverse Device for Conveying transmission.
Multi-functional : Standard for Rice and Wheat, with optional attachments for Soybean, Maize,Rapeseeds, and other granular crops.
High Efficiency:Strong Power,High capacity. Theoretical harvest efficiency is 0.27-1.1 hectare/hour.
Adaptability: High chassis with ground clearance 380mm, with longest rubber track 500*90*56 and widdest track guage 1250mm, Strengthened chassis with very strong sqaure tubes, offer this model super performance in deep mud field.
Production plant passed and accredited to following items: ISO9001:2008, European Standard Certification CE, Bureau Veritas Certifcation BV, llAC-MRA CNAS Certification.
This machine is easy for operation and maintenance, it is a safety and energy-saving machine. Product Parameters

Overall Dimension	Length×Width×Heights ( mm ): 5465×2520×2900
Weight (kg)	3600
Feeding Capacity( kg/s )	6
Harvesting Capacity(hm²/h):	0.27-1.1
Engine	Engine Model: 4D35ZT32/1004 (Alternative)
	Rated Power ( kw/hp ): 73.5/100, 92/125
	Engine Type: Water-Cooled, 4-Cylinder, DIInjection, Vertical Diesel. Turbocharged Engine.
	Rated Rotation Speed (r/min) : 2400
	Fuel Tank Capacity ( l ): 210
Driving System	Rubber Track(mm): 500 x 90 x 56
	Crawler Steering Radius ( mm ): left turn 2850; right turn 2850
	Minimum Ground Clearance (mm): 380
	Type of Gearbox: Hydraulic type + HST(3F, 3R)
	Theoretical Operating Speed ( km/h ): 2~4
	Type of Brake: By Foot.
	Steering: Clutch and Brake.
Cutting header	Pickup Reel: Type:Eccentric Tooth ( off-centre ); Diameter( mm ): 944; Nos: 5
	Height Adjustment: Hydaulics.
	Cutting Bar Length ( mm ): 2200
	Type of Header Auger: Telescopic Screw Conveying.
	Type of Blade: V Type / Left and Right.
	Rape Seed Extension: Optional
Threshing & Separating	Threshing System: Spiked Tooth Axial Flow
& Cleaning System	Threshing Cylinder Size Diameter × Length ( mm ): 626×2200
	Concave Sieve :Grid x 4
	Reshresher: Blade Rotation.
	Vibrating Sieve: Adjustable Sieve / Meshing Sieve / Hole seive (Optional)
	Fan: Type: Swirl; Diameter( mm ): 405; Nos: 4
Grain Storing	Option 1: Grain Tank with 360 Unloading Auger, Capacity ( L ): 1600
	Option 2: Grain Tank with 90 Unloading Pipe. Capacity (L): 1600
	Option 3: Small Grain Tank: Manual Operation.

Detailed Photos

OPEN FOR CUSTOMIZING

EXIHIBITION

Installation Instructions

Company Profile

FAQ

---
