ASTM D217 Lubricating Grease of Ten Thousand Times Shear Tester

Product Details

Product Description

Product Description

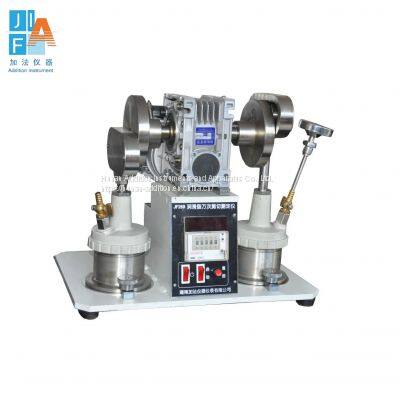

Lubricating Grease Cone Penetration of Ten
Thousand Times Shear Tester ASTM D217
Product Model: JF269C
Product Introduction
This testing machine is a special testing instrument designed and manufactured according to the requirements for full-scale workers in international standards such as ISO 2137. It is suitable for the determination of working penetration or extended working penetration of lubricating grease and petroleum grease under the above standards, and performing 60 or 100,000 shear tests. Thereby evaluating the mechanical stability of grease and petroleum grease.
Technical Parameter:
1. Applicable standard: ASTM D217 ISO 2137 GB/T269
2. Electric speed: 1400 rpm
3. Coupling: plum-shaped elastic coupling
4. Motor power: 375W
5. Turbo reducer: double output shaft reducer
6. Number of working heads: two
7. Reduction ratio: 1:25
8. Working power: 220, 240V 50, 60HZ
9. Machine power: 1200W
10. Instrument size: 500×600×450mm
11. Net weight: 120KG
Main Feature
1. The spindle motor adopts a single-phase squirrel-cage motor, which runs smoothly; the reducer adopts a box-type gear structure, which works reliably; the counter adopts digital display, which is convenient for observation; the base is made of thick steel plate, which is firm and durable.
2. Plum-shaped elastic coupling is used to connect the reducer and the motor.
3. Double output shaft reducer. The transmission ratio is 25:1, and a pair of eccentric mechanisms are installed on the turbine shaft at both ends of the reducer
4. It is installed on the frame on both sides of the reducer, driven by the motor through the coupling through the eccentric mechanism of the reducer, and works continuously at about 60 movements per minute.
5.5-inch color LCD touch screen. When selecting the number of computer relays, use the wave switch to arbitrarily set a number (time), when the number reaches the set value, it can drive the relay to work and cut off the motor power.
6. This instrument is a double-acting reciprocating test equipment. It is composed of motor coupling, reducer, eccentric mechanism, working device and machine base, etc.
7. The computer monitors the motor temperature and torque parameters in real time, so as to protect the motor from damage.
8. It has the function of monitoring the ambient temperature. If it exceeds the test temperature range of 15-30°C, a prompt will be given.

---
