Temperature Verification Instrument for Freeze-drying Equipment

Product Details

Product Details

Product Description

Product Description

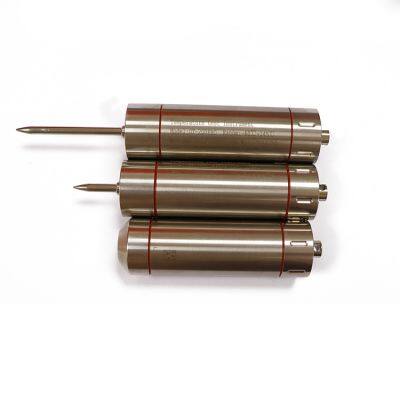

Ⅰ. Temperature Verification Instrument for Freeze Drying Equipment Designed specifically for freeze drying, it solves all the verification challenges associated with this valuable process. The product is compact and can be used with a copper block, which can uniformly test and verify the temperature change of the lyophilized plate layer. It can be used with all wireless temperature verification probes to do the analysis and export the verification report, or it can be used to analyze a separate plate layer and export the verification report, which allows for a flexible analysis and verification.
Product features of the temperature verification instrument for freeze-drying equipment:
① Measurement accuracy as high as ±0.15°C
②Superior performance in high temperature resistance
③Large-capacity recording memory (32,000 sets of data), records can be saved
④Using 3.6V high temperature lithium battery
⑤USB2.0 communication interface, strong compatibility
⑥Waterproof grade up to IP68, can be completely waterproof in the environment with a certain pressure.
(7) Stainless steel material, sturdy shell design, durable
(8) comes with F value automatic calculation function, so as to analyze the sterilization process of heat penetration and heat distribution
⑨ available computer display and print the recorded temperature curve and reports, real-time clock
⑩ wireless, reusable, easy to install anywhere, no longer need to install the cost and additional costs
Ⅱ. Product parameters of the temperature verifier for freeze drying equipment:
Measurement range
-60°C to +145°C
Measurement accuracy
±0.15°C
Resolution
0.01°C
Sensor
Pt100, single channel
Recording interval
multiples of 10 seconds, user programmable
Recording capacity
32000 points or 512KB
Battery
3.6 V high temperature lithium
Battery life
1 year for typical applications, depending on frequency of use.
Main body size
26 x 97 mm (with probe); 26 x 87 mm (without probe)
Probe size Standard
4 x 80 mm, customized lengths (range: 20 mm ~ 180 mm)
Material
Stainless steel 304 Option 316
Waterproof rating
IP 68
