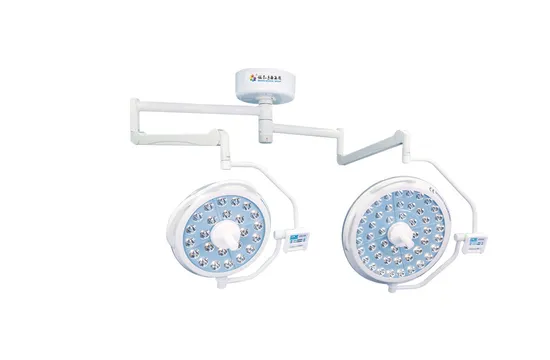

Operating Room Operating LED Lamp Shadowless Operation Theatre Light Surgical Equipment

US$1,800.00-2,200.00 1 set (MOQ)

Basic Info.

Model NO.
LED720/520
Certification
CE, FDA, ISO13485
Group
Adult
LCD Display
Without LCD Display
Illuminance
160000+120000lux
Bulb Type
LED
Light Bulb Life Time
60000hours
Warranty
1 Year
Transport Package
Plywood Box
Specification
101*44*46cm
Trademark
Mingtai
Origin
China
HS Code
9405429000
Production Capacity
2000sets/Years

Product Description

Product Description Imported Germany second generation balance arm hanging system (optional)
With Standard surgical light rotating axis system( Patent)
With Standard butterfly spring braking system, preventing drifting ( Patent)
With standard surgical light focusing (Patent)
Imported electric commutator system from Germany :LED bulb imported from Germany
High grade power system from Taiwan
ABS operate handle in the lamp rim
with big headlight cup, 3w high power LED bulb

Detailed Photos
Product Parameters
Technical Parameters/Model MINGTAI LED720
( Basic model)
MINGTAI LED520
( Basic model )
Maximum Light Output Measured in 1m(lux),Ec 160,000 130,000
Color Temperature (Kelvin) 4,300 4,300
Adjustable Color Temperature (Kelvin) (Optional function) 3600-5600 3600-5600
Color Rendering Index (CRI) 96 96
Red Color Index (R9) 96 96
Electronic ray intensity control
standard standard
Dimming range 10-100% 10-100%
Temp rise(Surgeon head)(ºC) 0.5 0.5
Temp rise(surgical field)(ºC) 2 2
Effective Focusing Depth(cm) 60-150 60-150
Total Irradiance Ee (W/m2) 530 530
Radiant Power/ Intensity Ee/ Ec (mW/m2lux) 3.3 3.3
Lighting Spot Size (mm) 100-300 100-300
Bulb Type LED LED
Average Bulb Life (hours) 60,000 60,000
Bulb Quantity 48LEDS(main bulb)
+96LEDS(auxiliary bulb)
24LEDS(main bulb)
+48 LEDS(auxiliary bulb)
Depth of Illumination L1+L2 (cm) ≥130 ≥130
Power Consumption of the Light head (W) 70 50
Height adjustment(cm) 118 118
Power Input 100-240VAC, 50/60Hz 100-240VAC, 50/60Hz
Certifications
Packaging & Shipping
Installation Instructions
Company Profile
