Light Type Drill Press Drilling Machine Zq4125D/Zq4132D/Zqd4125D/Zqd4132D

US$300.00-880.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZQ4125D/ZQ4132D/ZQD4125D/ZQD4132D
Layout
Vertical
Controlling Mode
CNC
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Spindle Taper
Mt3
Transport Package
Wooden Case/Wooden Bracket/Nude Packing
Specification
1040x640x2050 mm
Origin
Zhejiang
HS Code
8459290000

Product Description

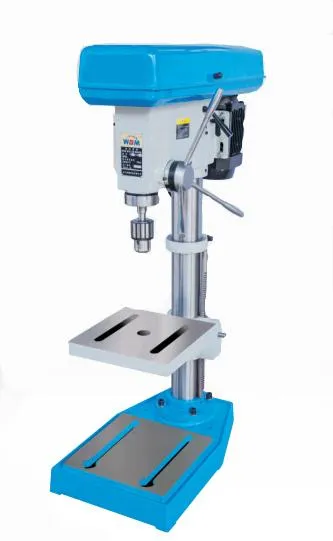

Light Type Drilling Machine ZQ4125D/ZQ4132D/ZQD4125D/ZQD4132D

Light and flexible, it can be used not only on machine processing, repairing but also DlY repairing and daily use.

Specification:
Model No. ZQ4125D/ZQ4132D ZQD4125D/ZQD4132D
Item No.
Moving
Max.drilling capacity 25/31.5mm 25/31.5mm
Diameter of column 85 mm 85 mm
Distance spindle axis to column generating line 200 mm 200 mm
Spindle
Spindle taper MT3 MT3
Spindle travel 110 mm 110 mm
Distance spindle nose to table 480 mm 390 mm
Max .Distance Spindle nose to base 670 mm 1140 mm
Spindle speeds range 200~2280 150~2270 r/min 200~2280 150~2270 r/min
Spindle speeds series 9/12 9/12
Dimension of worktable surface 280x280 or Ø360 mm 280x280 or Ø360 mm
Dimension of base 566x356 mm 566x356 mm
Other
Overall height 1110 mm 1680 mm
Power of motor 750 w 750 w
Packing dimension 108x77x34 cm 108x77x34 cm
G.W/N.M 105/98 kg 115/108 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
