Vertical Pellet Mill for Pine and Poplar Biomass Bamboo Pellet Machine for Biofuel Production

Product Description

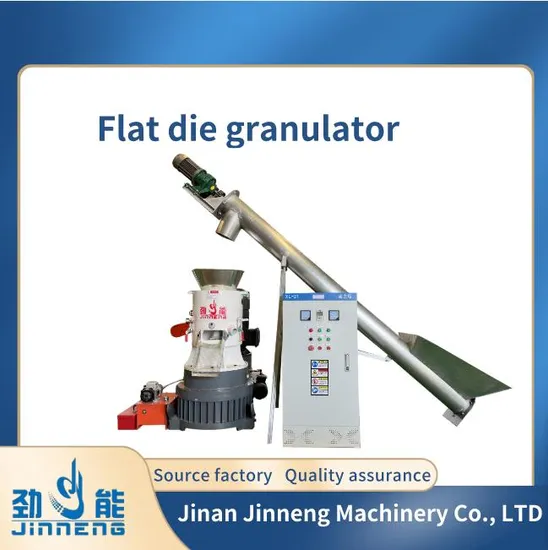

Flat Die Wood Pellet Machine
Flat Die Wood Pellet Machine The Flat Die Wood Pellet Machine, manufactured by Jinan Jinneng Machinery Co., LTD, is designed to cater to the reading habits of English-speaking natives. This machine utilizes various solid waste materials such as crops, corn stalk, straw, peanut shell, corn cob, cotton stalk, soybean stalk, rice husk, weeds, branches, leaves, sawdust, and bark as raw materials.
By crushing, applying pressure, and densification, these raw materials are molded into small stick solid rest pellet fuel. The resulting pellet fuel, made from wood chips and straw scales, is created by pressing roller and ring die at room temperature.
The density of the raw materials typically ranges from 110-130kg/m3, while the particle density after molding exceeds 1100kg/m3. This high density makes transportation and storage of the pellet fuel extremely convenient. Additionally, the combustion performance of the fuel is significantly improved.
Product Description: Pellet Machine The pellet machine manufactured by Jinan Jinneng Machinery Co., LTD is designed to efficiently press low-viscosity and hard molding materials. It is perfect for pressing a variety of materials such as rice husks, hardwood sawdust, sunflower seed shells, peanut shells, wood veneers, and other wood wastes. Additionally, it can also effectively press various straws and agricultural wastes.
This versatile pellet machine finds extensive applications in the biomass pellet manufacturing industry as well as other pellet molding industries. It is equipped with an automatic lubrication system, ensuring smooth operation. The large shaft is injected with lubricant every 15 minutes, guaranteeing optimal performance and durability.

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
JN-300	22	200	800	1230×630×1030
JN-350	30	300	900	1380×630×1280
JN-400	37	400	1200	1380×630×1280
JN-450	55	800	1800	1480×730×1380
JN-450	75	1000	2500	2000×1000×1800
JN-550	90	1000	3000	2000×1000×1800
JN-650	110	1200	3200	2000×1000×1800

pure copper motor
The use of pure copper motor to ensure stable output power and prolong service life
oil pump
Equipped with lubricating circulation oil pump, it can provide lubrication assistance when the machine is running, so that the machine can run for a long time

Press wheel mill
Increase the coarse press wheel, the mill adopts the design of excellent chromium-manganese press shaft and the mill, so that the material is stirred evenly
Long service time
Excellent material, stable structure, suitable for long-term operation, reduce the failure rate

---
