Welcome to visit

Automatic Concrete Pump Small Portable Electric Engine Concrete Pump

US$28,000.00
1-2 Sets
US$20,500.00
3+ Sets

Basic Info.

Model NO.
HBS 60
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Welded Molding Machine
Structure
Cylinder Type
Productivity
60m²/h
Feeding Height
1370mm
Certification
ISO9001: 2000
Condition
New
Color
Customers′requirement
Max.Vertical Conveying Distance
150m
Power Type
Diesel/Electric
Unique Selling Point
Weichai-Deutz Engine
Feature
High Efficience
Weight
5000kg
Max.Horizonta Conveying Distance
600m
Accessories
Pipes and Clamping and Cleaning Balls
Max Aggregate Size
20-40mm
Video Outgoing-Inspection
Provided
Core Components
Pumpgearboxengineplc
Product Name
Trailer Concrete Pump
Capacity
30-90m3/H
Application
Construction Engineering
Power
82-176kw
Engine
Weichai-Deutz Diesel Engine
Trademark
Hengyuan
Origin
Henan, China
HS Code
84134000
Production Capacity
100sets /Month

Product Description

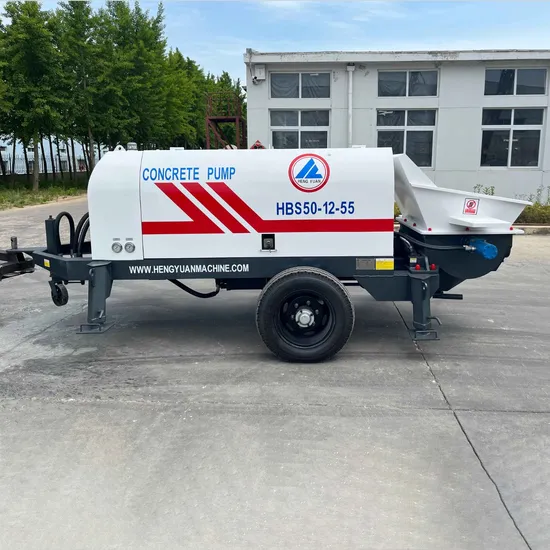

Diesel /electric mobile concrete pump for construction machinery
The concrete pumps are concrete transport machines, which are widely used for the construction works in city construction, bridge construction,electric power and other energy source facilities and so on.
HBS/JBS series concrete pump adopt electric motor for power source, and HBTS/JBTS series pump adopt diesel engine for power source.
Product Details
Model
HBS/HBTS40
HBS/HBTS50
HBS/HBTS60
HBS/HBTS80
Max. Theoretic capacity
m3/h
40
50
60
80
Max, Theoretic pressure
Mpa
10
12
12.5
15.7
Motor/Diesel engine power
kw
45/66
55/84
90/129
110/176
Max. Theoretic distance
Vertical
m
120
150
200
250
Horizontal
m
250
300
500
800
Disribution valve type
--
S valve



Hydraulic oil circuit type
--
Oper Circuit



Specification of concrete cylinder
mm
Ø160x1000
Ø180x1200
Ø200x1800
Ø200x1800
Specification of main oil cylinder
mm
Ø100x1000
Ø125x1200
Ø140x1800
Ø140x1800
Oil tank capacity
L
300
300
420
420
Hopper capacity
L
600
600
600
600
Max. Aggregate diameter
mm
Slick scree: 30
Scree: 20
Slick scree: 40
Scree: 30
Slick scree: 50 Scree: 40
Dimension (LxWxH)
mm
4500×1750×1600
4800×1800×1650
5800×2000×1750
5800×2000×1800
Overall weight
kg
3200
3500
5500
5800
pulling speed
km/h
≤8

Packaging & Shipping



Certifications


Company Profile
HENAN HENGYUAN CO.,LTD.
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery: concrete batching plant,concrete pump,concrete mixer with pump,mobile concrete batching plant,stabilized soil mixing plant and cement silo.
Our office is located in Zhengzhou City,Henan province.Our factory is located in Xingyang,Zhengzhou City.Hengyuan concrete machinery has a long history of 25 years and was established in 1999.All of hengyuan Iproducts have passed ISO9001 and the batching plant have passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world.Our main market including Canada,Uzbekistan,Russia,Peru,Brazil and Africa.
We are equipped with the CNC cutting machine, robot welding machine to ensure machine quality.Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
FAQ
Q: Are you trading company or a source factory?
A:We are factory.We mainly design and manufacture concrete equipment
(concrete batching plant, concrete pump)
Q: What are the terms of payment in your formal trade?
A:Normally we can work on T/T term.
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
Q: What about the delivery time?
A:Usually 15-20 days after receving the deposit.
Q: What's your after-sale service?
A:18 months warranty for main parts since departure.
On-site installation, debugging, workers training. Make sure that
your workers operate properly and know daily maintenance well.
Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us.
Also on-site technician service available as request.
