US$18,700.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Horizontal Axis
Transport Package
Export Wooden Box
Specification
7000x2700x2700
Production Capacity
300units/Month
Product Description

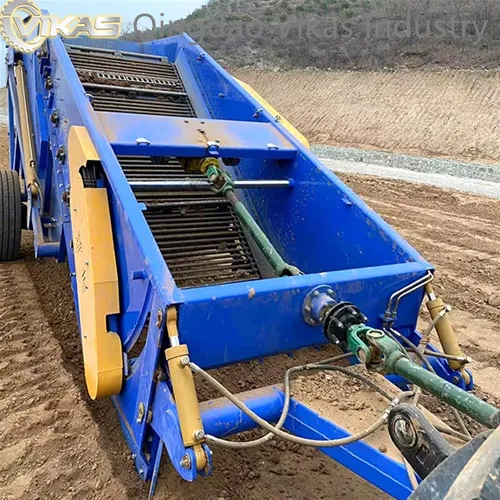

VIKAS 12JS Heavy Stone Picker
VIKAS 12JS Stone Picker
Wasteland reclamation stone picker
Easier to enter the soil, wide range of applications, quick stone cleaning.
Usage Scenarios: Stone picking in large areas of farmland, construction waste removal, mining area reclamation, homestead reclamation, debris flow impact repair.
Advantages: high stone picking efficiency and suitable for different soils.
Solve the problem of difficulty and high cost of cleaning stones in the soil.
Application:It can be used in sandy soil, plains, hills, mountains and other terrains to clean stones in farmland soil and stones on house demolition floors.
Model | 12JS-130 | 12JS-160 | 12JS-190 |
Dimension(mm) | 6850x2380x2460 | 7000x2700x2650 | 7000x2700x2700 |
Working Speed | 1-2km/h | 2-3km/h | 4km/h |
Picking Device | digging tip shovel+rock tooth roller |
Working Width | 1300mm | 1600mm | 1900mm |
Working Depth | 100-250mm |
Separation Device | Grille screen |
Conveying Device | Grid Screen Conveyor Chain |
Collecting method | Stone collecting box |
Box volume | 3m³ | 3.6m³ | 4.1m³ |
Discharge method | Fluid pressure |
Tire model | 295/60R22.5 | 445/45R19.5 | 445/45R19.5 |
Wheel Track | 1980mm | 2040mm | 2040mm |
Supporting Tractor power | 140hp-220hp | 150hp-220hp | >200hp |
Advantages:
1.The use of thickened alloy conveyor chains reduces stone blockage and enables faster soil and stone separation.
2.Super-hard steel soil entry shovel with replaceable tooth head and super impact resistance.
3.Floating stone picker avoid stone accumulation.
4.Well-known brand hydraulic control system.
Easy to operate and high work efficiency.
5.Special high-strength engineering tires, long tire service life and safer operation.
Workshop overview
Packaging & Shipping
Certifications
>>
