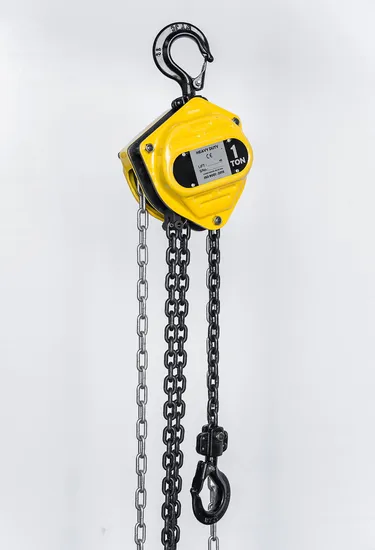

HS-J Type 1t 3m Hand Chain Pulley Block with High Quality

US$30.00-40.00 100 set (MOQ)

Basic Info.

Model NO.
HS-J
Application
Lifting Platform, Small Crane, Lifting
Type
Chain Hoist
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
3m
Chain Falls
1
Certification
CE, ISO9001:2000, GS
Condition
New
Color
Yellow
Model
HS-J1
Capacity(T)
1
Standard Lift(M)
2.5
Running Test Load(T)
1.5
The Min. Distance Between Two Hook(mm)
400
Load Chain Columns
1
Diameter(mm)
6
Packing Size(Cm)
30*24*18
Net Weight(Kg)
9
Gross Weight(Kg)
11
Transport Package
Wooden Case or Carton
Specification
CE&GS by TUV
Trademark
SHUANG GE
Origin
China
HS Code
8425190000
Production Capacity
350, 000 Set Per Year

Product Description

Features:
1) 360° swivel hook with cast steel safety latch
2) Rolled edge design to ensure smooth moving of hand chain
3) Durable steel frame with heat treated load bearing components
4) Roller bearings or caged ball bearings on load sprocket & side plate maximize efficiency and serviceability
5) Automatic double-pawl braking system, safety and reliability
6) Simple assembly & low-maintenance features
7) Tested to 150% of rated capacity, safety coefficient at least 4:1
8) Meets or exceeds EN13157 and other pertinent world standards
9) Optional overload protection system and grade 100 load chain
Advantages:
1) Long history and famous brand: Established in 1972, with the famous brand of Shuang Ge, Peace Bird, Wuyi.
2) OEM experience
3) Scale of production: More than 400 employees and covers a total area of about 200,000 square meters.
4) Honor and Certification: CE, GS certification by TUV. Two-time national gold award, this is issued by the government of China.
5) Equipment: 22 sets Original Wafios device.
6) Team: More than 100 professional technical team, and more than 50 salesman with the World-wide sales network.
7) Market occupancy: Almost 90% Southeast Asian market are SHUANG GE brand.
Model HS-J0.5 HS-J1 HS-J1.5 HS-J2 HS-J3 HS-J5 HS-J10
Capacity tons 0.5 1 1.5 2 3 5 10
Standard lift m 2.5 2.5 2.5 2.5 3 3 3
Running Test Load Kn 0.75 1.5 2.25 3 4.5 6.25 12.5
Effort required to lift rated load N 221 304 343 314 343 382 392
Strands of load chain 1 1 1 2 2 2 4
Load chain diameter mm 6 6 8 6 8 10 10
Dimensions(mm) A 138 164 198 164 195 228 367
B 114 124 142 124 142 167 167
C 21.5 27 30 30 37 46 54
D 145 182 219 182 219 252 252
Min.Diatance between both hooks mm 271 400 453 420 620 704 720
Net weight kg 8 10 16 14 24 36 72
Gross weight kg 10 13 20 17 28 45 87
Package size(L*W*H) cm3 28×21×17 30×24×18 38×33×20 33×28×19 38×33×20 45×39×24 55×51×29
Extra weight per meter of extra lift kg 1.7 1.7 2.3 2.5 3.7 5.3 9.7

FAQ
Q1:Why Choose Wuyi Lifting?
A:Wuyi established in 1952,more than 70 years experience in the chain hoist field with professional technical team.
Q2 :Can I have samples to test?
A: Yes, Sample can be sent for testing.
Q3. Q:Guarantee
A: One year
Q4: Q:OEM service
A: OEM service is available.
Q5. What's the lead time for regular order?
A: The normal delivery time is 30-45 days.
Q6. What is your payment terms?
A: 30% T/T in advance, 70% balance before shipment or L/C.
Q7. What is your terms of packing?
A: Cartons with Pallet or wooden case
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
