Product Description

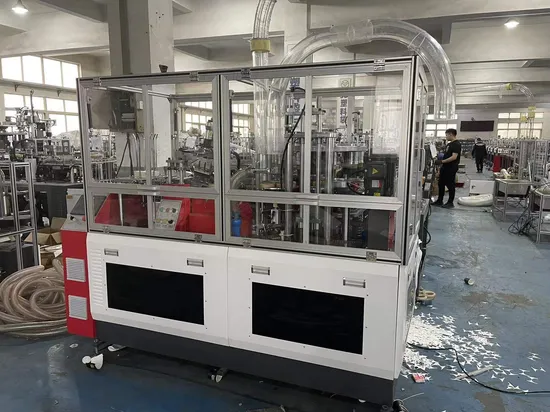

Paper Cup Machine YB-S100
------Quotation: Yb-S100 paper cup machine FOB Ningbo With wooden case
------Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
------Delivery time: 45 days after receive the payment of deposit
------Payment: Deposit 30% by T/T in advance, delivery against payment of 70% balance after qualified acceptance
------Leave factory testing: before leaving factory, equipment should be tested by both parties. Test material offered by buyer
------Installation: we will send 1 technicians for machine's installation and debugging according to customer's requirement; the technician's board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD100.For each technician/one day, estimate 5-7 working days
------Guarantee period: Guarantee period is 12 months after getting the machine
------The supplier shall provide the service:(after pay the machine)
------the supplier to send adjustment of installation and commissioning
------the supplier direct buyer's technical personnel operating the machine
------The buyer shall provide the facilities and preparations:(Delivery machine to finish)
------foundation and adapter power supply water and compressed air pipe and related projects
Cup Size Range |
| Cup Bottom Diameter: Min 35mm~Max 75mm Cup Top Diameter : Min 45mm~Max 100mm Cup Height : Min 30mm~Max 115mm Bottom Knurling Depth: Min 4mm~Max 10mm (popular 5mm) Top Curling Rim Diameter : Popular about 2.5Φ~3Φ |
Technical Data
Model | High Speed Simple Model Ultrasonic Paper Cup Machine YB-S100 |
Paper Cup Size | 2 -12 OZ (Mould exchangeable, Max Cup Height: 115mm, Max Bottom width: 75mm) |
Rated Speed | 100-110pcs / min ( Speed affected by cup size , paper quality thickness ) |
Raw Material | One or Two side PE coated Paper ( Popular for Hot and Cold drink Cups ) |
Suitable paper weight | 150-350gsm |
Paper Source | 50/60HZ,380V/220V |
Total Power | 5KW |
Total Weight | 2500KG |
Pacl Size(L*W*H) | 2200*1350*1900mm (machine size) 900*700*2100mm ( collecting table size) |
Cup side Welding | Ultrasonic heater |
Machine Size
Control Panel
Control panel with good quality switches , temperature controller and speed converter.
All the operation of machine can be finished easily by this panel
Electric System
Quality Brand electric System like Delta .some from Japan or German
Main electrical equipment configuration
Touch screen | 1 | Delta |
Inverter | 1 | Delta |
Step driver | 1 | Shenzhen Xinghuo |
Temperature module | 1 | WK8H |
PLC | 1 | Delta |
Ultrasonic | 1 | Kejian |
Switching Mode Power Supply | 1 | Mingwei |
Solid state relay | 6 | Yangming |
Air switch | 5 | CHNT |
AC contactor | 4 | Schneid er |
Photoelectric switch | 8 | Sick/Panasonic |
Miniature relay | 6 | OMRON |
Encoder | 1 | OMRON |
PLC DC amplifier board | 1 | OMRON |
Phase sequence protector | 1 | CHNT |
Main Turn plate
This model is equipped with 10 Cup molds, which operates faster than the old 8 Cup molds
Bottom Heater System
The new design adds a bottom heating system more than the old design which make the paper cup sealing effect is more better.
principal axis
Large and thick central shaft makes machine run stably at high speed without shaking
Bottom Paper Feeding Unit
New design : The steel plate presses the bottom paper to make the paper feeding more stably and smoothly.
Moving Cooling fan
Two cooling fans, two fans can make the paper fan cooling faster, make the cup fan better sealing.
Cam drive and automatic lubrication system
The whole machine adopts automatic oil lubrication system( oil circulation system is including oil motor,filter, copper pipe )which makes all gear moving parts working at high speed much more smoothly and greatly Improve the service life of spare parts.
Machine integrated motherboard
Integrated steel board: The operation board is large and thick integrated steel board, more durable and easy to clean
Delivery parts list:
Product name and quantity
One copper head electric heating rod | One 10 inch sliding wrench | Three small springs | Heating and preheating one main hot ring each | Two heating pipes |
Bearing 5204 + knurled wheel one set | One set of Allen wrench | One set of external hexagon wrench 8-10 12-14 17-19 22-24 | Six foot screws M18 | One oil bottles |
One Measuring pencil | One cross screwdriver | One Hammer | One machine wrench | One pieces of adhesive tape |
Ring wrench 12-14, 17-19, 1 each | One pliers | Three skin aspirating (transparent) | Eight socket head screws, 6, 8, 10 and 12 | Twelve nut flat pad |
