US$8,000.00-28,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Mobile Crushing Plant
Capacity
50tph, 100tph, 150tph, 200tph
Dimension(L*W*H)
According to Models
Material
Q23b Steel, Mn13cr2/Mn18cr2
Discharge Size
0-35mm Aggregates
Test&Installation
Under Enginees Guidence
Voltage
380V Three-Phase 50Hz
Core Components
PLC, Gear, Motor, Engine, Bearing, Gearbox
Crushing Degree
Coarse Crusher
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (for Crushing)
100-250MPa
Tongs′ Features
Universal Tongs
After-Sales Service
Keep Under Warranty
Transport Package
Standard Container
Production Capacity
150/Year
Product Description

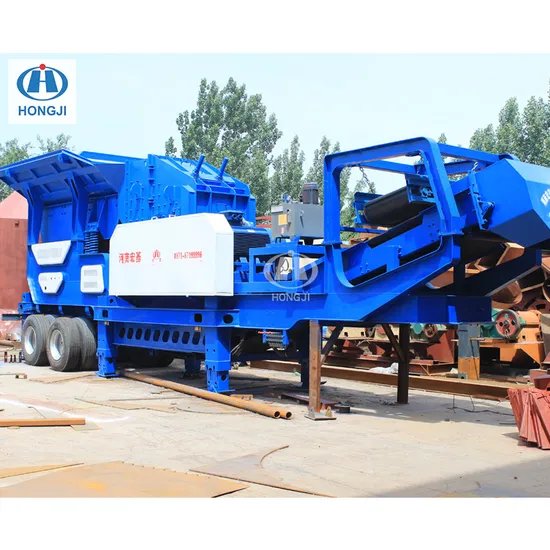

Mining Crusher Machine Mobil Impact Crusher For Limestone Ore Stone Crushing Station Product Description
Mobile impact crushing plant is used to crush large materials in two stages, and then screen the crushed materials according to different specifications. It can finish crushing and screening within a complete production process to produce required size and output for consumers.
Mobile impact crusher can process medium hard stones, and final products can be used in road, bridge, construction and water conservancy, etc. Industries. As one process of crushing work, mobile impact crusher can meet different requirements about capacity and output size by changing models.
Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.
Featurers
1. Move easily. It can go to the crushing place directly. It can move not only on the smooth road,but also on the bumpy road. 2. Compact structure and simple operation. Integrative equipment group with trailer save the working area. 3. With generator, motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.
4. Save the cost. By crushing the materials on site, the transportation cost is reduced. Product Parameters
Model | HJ938F1210 | HJ938F1214 | HJ1149F1315 | HJ938F1110 | HJ1349F1315 |
Transportation Length (mm) | 12000 | 12000 | 13900 | 15450 | 15450 |
Transportation Width (mm) | 2550 | 2550 | 2900 | 2950 | 2950 |
Transportation Height (mm) | 3900 | 3900 | 4450 | 4500 | 4500 |
Maximum Length (mm) | 12500 | 12500 | 13900 | 15450 | 15450 |
Maximum Width (mm) | 3250 | 3260 | 3250 | 3250 | 3250 |
Maximum Height (mm) | 5100 | 5200 | 5200 | 5200 | 5200 |
Weight (t) | 39 | 44 | 54 | 62 | 62 |
Crusher Model | PF-1210 | PF-1214 | PF-1315 | HD1110 | HD1315 |
The Maximum Feeding Size (mm) | 350 | 350 | 500 | 400 | 700 |
Production Capacity (t/h) | 70-130 | 100-180 | 130-250 | 112 | 280 |
Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 | ZSW130×4900 | ZSW130×4900 |
Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M | B800×11M | B1200×11M |
Side-opening Belt conveyor (Optional) | B500×3.2M | B500×3.2M | B650×4M | B650×4M | B650×4M |
Genset (Optional) (kw) | 320 | 320 | 400 | 320 | 440 |
cases
Company Profile
Hongji Mining Machinery Co, Ltd. is a large production-oriented enterprise with import and export qualifications, mainly providing "whole mining beneficiation equipment system and service, and is a large-scale joint stock enterorise intecrating RaD, manufacturing, sales. and EPC proiect The company is headguartered at No. 166 North Taojia Road, Xingyang City, Zhengzhou City, Henan Province , with a total area of more than 80000 square meterAfter more than 20 years of development, now t has three producton bases, more than 180 sets of varous arge and medium-sized processing machining ivetina. weldina. and assemblv equipment. more than 200 emplovees. with 75 senior and intermediate itles' professional encineers.
FAQ
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Guaranteed:
If products 'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3. How about price?
Yes, we are factory and are able to give you the lowest price than market one and we have a policy that "for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
4. Service and Payment Terms?
A. We usually accept T/T, L/C, but other terms also workable.
B. We take pictures of finished products before delivery.
5. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accommodation, and food.
>>
