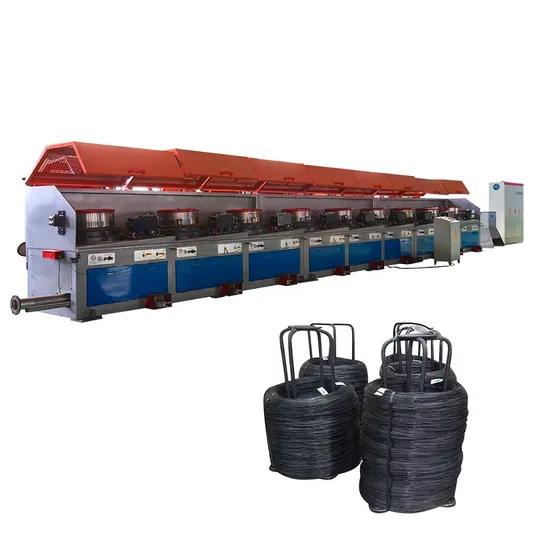

Steel Iron Wire Drawing Machine 5blocks

US$42,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LZ450
Type
LZ Straight-Line Metal Drawing Machine
Usage
Wire, Prestressed Steel Wire
Metal Material
Steel
Outlet Diameter
0.1-1.2mm
Max.Inlet Wire Dia.
14mm
Block Dia.
600mm
Max. Number of Block
12
Certification
ISO
Condition
New
Speed
Fast
Reduction Per Draft
20%
Design Speed
7.5m/S
Maximum Inlet Diameter
16mm
Transport Package
Sea Shipment
Specification
10T
Trademark
Hylite
Origin
China

Packaging & Delivery

Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
10000.000kg

Product Description

Product Description
Steel Iron Wire Drawing Machine 5blocks
Straight line wire drawing machine uses the most advanced technology in Europe and the production experience accumulated by our company over the years and our patented technology, for the majority of users to produce energy saving, environmental protection, intelligent and efficient wire drawing production line.
Product Parameters
Steel Iron Wire Drawing Machine 5blocks
Project Name
Technical specification
Drawing block
5
Design speed
7.5m/s
Maximum inlet diameter
Ø 16mm
Inlet strength
≤1250Mpa
Minimum occurrence diameter
Ø3mm
Reduction per draft
20%
Drum diameter
Ø1200, Ø1000, Ø900
Coil surface treatment method
Solid surface hardening
Drum surface hardness
≥HRC55
Roll cooling method
The hollow shaft is closed inside water cooling and outside air cooling
Dynamic configuration
90-132KW
Kind of drive
Belt and hard gear reducer
Speed adjustment mode
AC variable frequency
Control mode
PLC bus control
Take-up with H wheel size
1120/1250/1400mm
Online dust removal environmental protection equipment selection
11KW
Siemens Intelligent control System
standard configuration

Product Feature
Steel Iron Wire Drawing Machine 5blocks Advantages This product uses the most advanced technology in Europe and the production experience accumulated by our company over the years and our patented technology to manufacture energy-saving, environmentally friendly, intelligent and efficient wire drawing production line for users
ΔSome of the product indicators have surpassed European equipment. Our company's invention patent number is ZL 2018 1 0819051.5, and the utility patent model is ZL2019 2 0632401.7, ZL2018 2 1987514.5, ZL 2022 2 0651779.3, ZL2022 2 0647468.X, and more patented technologies are used to save energy. 30 % or more, the service life of the equipment is extended by 20%, and the mold cost is saved by 60%
Δ Unmanned intelligent operation can be achieved from raw material entry to finished product take-up.
ΔThe take-up part adopts the double station design, which can realize the functions of automatic feeding, automatic cutting, automatic locking head and automatic switching of the I-wheel
ΔThis product is divided into horizontal and direct type two forms, and equipped with advanced phosphorus removal, rust removal device, environmental dust removal device, so that the surface of raw materials bright and clean while increasing the adhesion of raw materials lubrication medium, environmental protection device can make the production process to achieve dust-free production
ΔThis product leads the development direction of domestic and foreign industries and is favored by our customers
Usage and type Automatic drawing machine is widely used in the industry of mechanical equipment, widely used in machinery manufacturing, hardware processing, petrochemical, plastic, bamboo products, wire and cable, and other industries.
Detailed Photos

Company Profile

The enterprise was formerly known as Cangzhou Boyuan Wire Drawing Machinery Co., Ltd., which was established in 2009. The new enterprise Hebei Hylite Machinery Co.,Ltd. was founded in 2019 due to the development of the company and the expansion of production scale while the original production site can no longer meet production needs. It is now known as a large wire drawing machines manufacturer in northern China.
