0.65 Micron Fine Filtration Depth Stacked Filter for Beer and Yeast Removal Filtration

Product Description

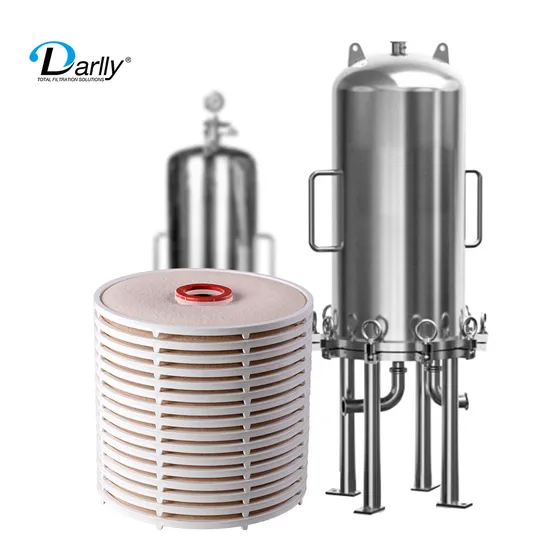

Depth-stack Filter Cartridge
General Description
Our Depth-stack Filter Cartridge is a new type of filter cartridge using depth filter sheets. It is designed using a double separator concept. The separator design increases the total stability of the filter cartridges as the separators fully support the sheet material. This design also prevents filter sheet deformities after heat treatments and adverse effects of contact with hot sanitation. It is manufactured with rigid external clips to prevent damaging filter sheets during module loading and unloading while allowing for easy and reliable handling.

Applications
--Particle removal
--Polishing filtration
--Final filtration (germ removal)
--Chill haze removal
--Bottling filtration
--Clarifying filtration
--Filtration after stabilization
--Pre-filtration prior to final membrane filter
--Removal of colloids

Features
--Back washable, resulting in high total throughput
--Easy and reliable handling rigid external clips prevent damage of the filter sheet during module loading and unloading
--No filter sheet deformities after heat treatment
--No adverse effects to filter sheets when in contact with hot sanitization or process filtration
--Increased filtration security separator design increases the total stability of the filter cartridges as the separators fully support the sheet material

Specifications
Dimensions

Outside diameter

8″, 12″, 16″

Material of Constructions

Depth filter sheet	Cellulose fibers, Natural diatomaceous earths, Perlite, Resins, and etc.
Core/Separator	Polypropylene(PP)
Double O-ring or flat gasket	Silicone, EPDM, NBR, FKM

Performance

Typical rating	C002:0.2-0.4μm C004:0.4-0.6μm C100:1-3μm C150:2-5μm C200:3-7μm
Maximum operating temperature	85ºC
Recommended maximum operating pressure	2.4 bar
Sterilization	121ºC at 1.75 bar

Part numbers/Ordering Information
Depth-stack Filter Cartridge P/N: DLDS-=-#-+-*-☆-& (e.g., DLDS-08-S-E-C100-S-A

---
