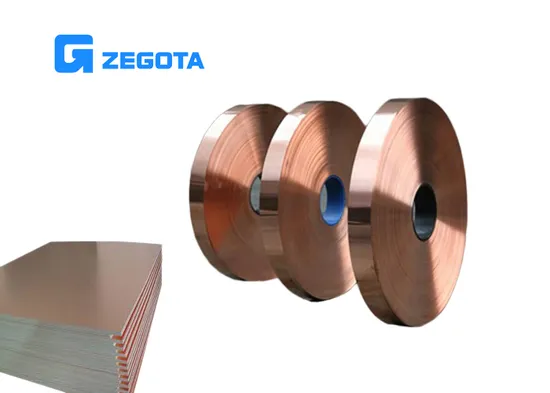

Ultra Thin Copper Clad Aluminum Sheet, Aluminum Clad Plate Multipurpose

Product Description

Specification

Clad material	Copper	Steel	Copper	Copper
	Aluminum	Aluminum	Aluminum	Aluminum
	Copper	Copper	Copper	Copper
	/	Aluminum	/	/
Thickness (mm)	0.01-4.0	0.04-4.0	0.01-4.0	0.01-4.0
Width (mm)	5.0-1500	5.0-1500	5.0-1500	5.0-1500
Tensile strength (MPa)	260-320	170-220	480-580	110-150
Yield strength (MPa)	200-260	130-160	300-380	50-90
Elongation (%)	≥37	≥25	≥15	≥30

Products details
Advantages
1. High surface quality: Good surface roughness and dimensional consistency can be achieved by using cold rolling technology to manufacture combination metals and surface quality control technology.
2. High performance cost ratio: It is low manufacturing cost by clad in physical process and unique cold rolling technology without extra welding and explosion.
3. High electric conductivity: Copper has superior conductivity. Copper clad aluminum can keep the conductivity unchanged, which greatly reduces the cost and weight of the material.
Application
1. Power Industry: Copper clad aluminum laminated plate are used to replace traditional copper bars and transformer copper windings, while ensuring the performance, reducing the overall cost and lighter weight.
2. Electronic industry: Copper clad aluminum laminated plate is used instead for heat conduction and heat dissipation system, which can improve thermal conductivity and heat dissipation effect under the original function. It can be used for conductive transition board, high and low voltage distribution cabinet, switch set, bus bar, electrolytic cell and so on.
3. LED industry: The use of copper clad aluminum laminated plate can give full play to the good thermal conductivity of copper and heat dissipation performance of aluminum, reduce the overall thermal resistance of LED packaging, effectively reduce the junction temperature of the chip, and make it possible for higher power LED packaging.
Factory
Company Profile
Zhejiang ZEGOTA Precision Technology Co.,LTD
Our company dedicate to precision technology innovation. As a technical enterprise, we highly specialized our R&D capability to make high quality and high performance products through continuous investment in staff training and sophisticated equipment, and to promote the construction of an intensive society for efficient utilization of materials and exploring future manufacturing ways

---
