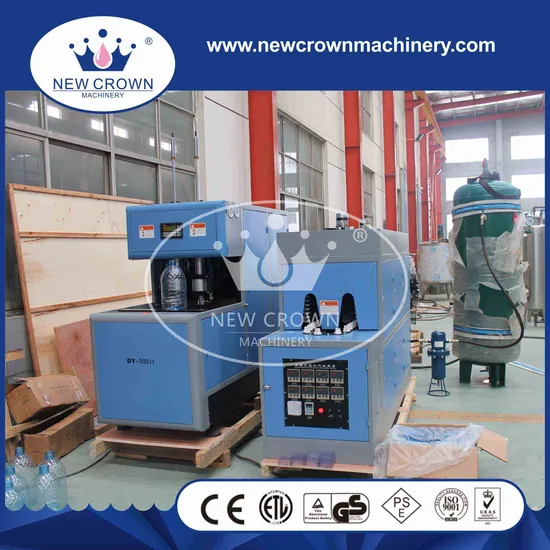

Factory Price Semi-Automatic Pet Bottle Blow Molding Machine Big Bottle

Product Description

Product Description

Main features:
PET bottle blow molding machine is used to blow bottles from PET perform which can be bought directly from the market.

Application: Food, oil, carbonated drinks, mineral water, alcohol, medicine, chemical etc;

There are two types of semi-automatic PET bottle blow molding machine:
Type A (DY-500): 1+1 means one set of perform heater plus one set of bottle blowing machine (one cavity); this will need one person to operate the machine
Type B (DY-500II): 1+2 means one set of perform heater plus one set of bottle blowing machine (two cavity); this will need one to operate the machine
Technical parameter:

		Unit	DY-500	DY-500II
			TYPE A	TYPE B
Molding	Clamping force	kg	25000	45000
	Clamping stroke	mm	220
	Stretching stroke	mm	400
	Bottom stroke	mm	/	/
	Cavity pitch	mm	/	300
	Number of cavity	pcs	1	2
Container	Max. container volume	Ltr	6
	Neck diameter range	mm	10-120
	Max. container diameter	mm	200
	Max. container height	mm	380
	Carriage unit	pcs	72	96
Theoretical output		BPH	500	1000
Electric system	Total power	kw	17
	Heating power	kw	16
	Max. heating power	kw	10
Air system	Operating pressure	Kg/cm2	7
	Low air consuming	Ltr/min	600	800
	Blowing pressure	Kg/cm2	25
	High air consuming	Ltr/min	1200	2400
Air dryer	Operation pressure	Kg/cm2	2-4
	Temperature		10-12
	Consuming	Kcal/hr	2000
	Flow rate	Ltr/min	30
Water chiller	Operation pressure	Kg/cm2	2-4
	Temperature		30
	Consuming	Kcal/hr	10000
	Flow rate	Ltr/min	130
Machine size	Dimension	Mm	1850*650*1850	1850*850*1850
	Weight	kg	1100	1300
Remarks	1, All data standard indication for 0.6L bottle; 2, The actual output depends on the perform quality and bottle shape; 3, Specifications are subject to change without notice; 4, Please provide the stable ambient temperature;

Company Introduction

New Crown Machinery-Packing for a better world!
New Crown Machinery, located in Zhangjiagang City, China, plans, develops and manufactures machines and complete lines for the fields of process, filling and packaging technology. Its product portfolio is rounded off by information technology and factory planning. As an international technology group, the Company focuses on world-leading process technology and components for sophisticated production processes.

Since being founded in 2001, New Crown Machinery has become far more than a traditional-style machinery and line manufacturer: it has evolved into whole project designing company, who get's the whole package of a complete recycling packaging design.

New Crown Machinery's success is based on some few but crucial strategies: specialized knowledge of mechanical engineering and the detailed customer service, producing best quality equipment, operating to the most stringent of quality standards, and most especially by the skills of its highly motivated staff.

Learn more about our company, our production sites, and the people who give their best every day at New Crown Machinery: their experience, expertise, commitment and dedication for ever-better and more sustainable packaging systems.


FAQ

Q1: How to get your suitable machine or production line?
A1: Find our products through Zhangjiagang City New Crown Machinery Co., Ltd. in Google, Bing, Yahoo, ****** etc
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, MSN, Skype, WhatsApp) and let us know your enquiry.
• Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.

Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage packing machine and water treatment equipment over 15years.We just not only sell machines, we sell our brand and service. We have over 5000 workshop for our products processing, 60 engineers with technicians, and 600 office area for sales, after-sales service, 10 professional sale person with 10 after sale specialist.

Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.

Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.


Our Service

After Sales Service
1. Find our products through newcrownmachinery.en.made-in-china.com
2. Two years warranty for the whole system
3. Free equipment installation and debugging
4. After 1 year, we can help you to maintain the machine and the accessories are provided only on the cost price
5. Every 3 years, we can help to overhaul the machine free (Labor)
6. We can provide internship service and help you train the operator and machines
7. Free production technology and process configuration
8. We can help you to design the production line, workshop and provide turn-key project

---
