CE Semi Automatic Customized Silicone Rubber Injection Molding Machine

Product Description

Semi Automatic Silicone Rubber Injection Molding Machine Price
Usage:
Silicone Rubber injection molding press machine mainly apply to molding of various rubber and Bakelite molding products, etc., especially products with high quality requirement, complex shapes, thick wall and inserts.
Features: The Rubber injection molding press is semi-automatic type,it is very easy to operate and lower invest cost. The machine should put certain material into the charging barrel by hand, then the material will be injected to per mold cavity automatically. The machine is suitable for solid rubber or solid silicone rubber material. High speed open/close molds, high production efficiency. Low clamping speed, protect mold. Automatic in/out mold and ejector device, low labor strength.
Technical Parameters:

Technical parameter	item	63Ton	100Ton	200Ton
	clamping force	63Ton	100Ton	200Ton
	system pressure	21mpa	21mpa	21mpa
	clamping stroke	300mm	300mm	300mm
	Max. opening	350mm	400mm	480mm
	fast raise speed	≥70mm/s	≥70mm/s	≥70mm/s
	heater platen	360*400mm	450*450mm	600*600mm
	max temp	250ºC	250ºC	250ºC
	motor power	4kw	4+2.2kw	5.5+3kw
	oil tank capacity	100L	170L	200L
	extenal dimension	1600*1200*2500mm	1550*1800*2700mm	1800*2100*3000mm
	weight	2500kg	3000kg	5000kg

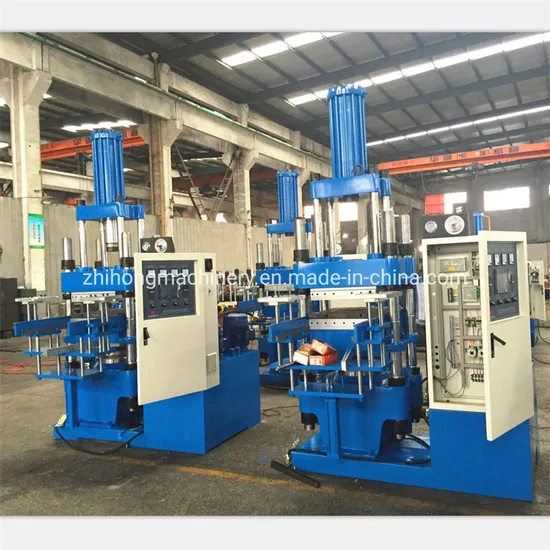

Product pictures:

Final products and moulds:
Shipping method:
1. We can ship the goods to you by Air, Sea and International Express such as DHL,UPS,TNT,EMS and so on.
2. You can also choose the appropriate one based on your timeline and budget.
3. You can choose to use your own shipping agent.
FAQ
Q: Do you have an export licence?
A: Yes.We are a professional manufacturer and trader.
Q: Which Certificate can you provide?
A: CE, FTA ,CO,and SONCAP etc.
Q:What's the Payment method?
A:Commonly the payment is 40% down payment by T/T before producing, 60% balance payment by T/T before shipping.
Q: What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
Q:How about your packing and shipment?
A:Products would be covered with PE film then put them into the standard wooden case, By Sea or by Air are available.
Q: What's your term of the delivery?
A: Our ordinary delivery term is FOB. We can also accept EXW, CFR, CIF, DDU etc. We'll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q: How long is your delivery time?
A: The general delivery time is 65 days after receiving your deposit.
Q:What is your warranty?
A:Our warranty time is 12 months, during guarantee period, the cost of any spare parts or new accessory should be borne by the seller;Beyond the warranty period we only charged for the cost of spare part.
After-sales service:
1. We could supply detailed English operation manual, Installation drawing, Electrical schematic diagram.
2. We can provide action video.
3. No matter the user has any problem, we will respond within 24 hours.
Thanks for your attention and waiting for your inquiry.

---
