Product Description
Product Description

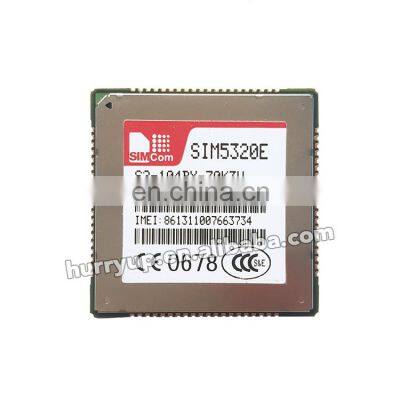

Description( simcom 3g module ) sim5218 sim5215 sim5320• The SIM5218 series is a Tri-Band/Single-Band HSPA/WCDMA and Quad-Band GSM/GPRS/EDGE module solution which supports up to 7.2Mbps downlink speed and 5.76Mbps uplink speed services.• It has strong extension capability with rich interfaces including UART, USB2.0 high speed, Embedded SIM Card, SD Card, Camera sensor, GPS, etc. With abundant application capability like embedded LUA script, TCP/ UDP/ FTP/ HTTP/ SMTP/ POP3 and MMS, it will add much value to customers’ application. It is ideal for a wide range of products including USB Modems, gateways, router, PDA, Video phone, and much more.Advanced features• SIM5218A: Tri-Band UMTS/HSPA 850/1900/2100MHz • SIM5218E: Tri-Band UMTS/HSPA 900/1900/2100MHz• SIM5218C: Single-Band UMTS 2100MHz• USB 2.0 high speed or UART• Embedded SIM Card (option)• A-GPS/GPS positioning• Video call with camera sensor interface• WCDMA Equalizer• WCDMA Diversity General features• HSDPA 7.2Mbps• HSUPA 5.76Mbps• GPRS multi-slot class 12• EDGE multi-slot Class 12• UMTS/HSDPA 3GPP release 5• UMTS/HSUPA 3GPP release 6• GSM 3GPP release 99• Output power- UMTS 850/900/1900/2100: 0.25W- GSM850/GSM900: 2W- DCS1800/PCS1900: 1WControl Via AT Commands• Supply voltage range: 3.3V~ 4.2V• Dimension: 58*26*4.5mm• Weight: 15g• Temperature: -20 °C to +70 °C• Restricted operation temperature: -30 °C to -20 °C, +70 °C to +80 °C• Storage temperature: -40 °C to +85 °C Specification for A-GPS/GPS• A-GPS: MS-Based, MS-Assisted,• Stand-alone GPS Specification for Network Identity and Time zone (NITZ)• Support in GSM and WCDMA Specification for video call• DTMF on H245• Support standard WCDMA 64kbps(CS) Video call Specification for SMS• Point to point MO and MT• Text and PDU mode Specification for Voice• Voice codec: HR,FR, EFR• AMR• DTMF Specification for Data transferHSDPA- Max.7.2Mbps(DL)- UE Category: 4, 6, 8, 12HSUPA:- Max.5.76Mbps(UL)HSUPA+HSDPA- Max. 2.0Mbps(UL)+3.6Mbps(DL)UMTS- Max.384Kbps(DL), Max.384Kbps(UL)EDGE Class:- Max. 236.8Kbps(DL),Max.118Kbps(UL)GPRS- Max. 85.6Kbps(DL), Max.42.8Kbps(UL)CSD- GSM data rate 14.4Kbps- WCDMA data rate 57.6KbpsWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
