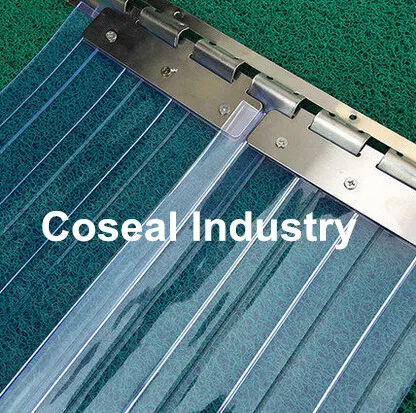

Stainless Steel Hanging Rail Holder

Product Description

How to install the PVC strip curtain?
1.Cutting
Measure the size of door and cut the PVC strip curtain accordingly. Make sure the angle is 90 degree; Be carful with the cutter

2. Punch hole
a) Pushing holes in one side of PVC strip curtain
b) 200mm width door curtain need 3 holes
c) 300mm width door curtain need 4 holes

Install holders
a) Butt holders to the PVC strip with Screw.
b) Make sure the angle between strip and holders is 90 degree
4.Install hangers
a) Choice the best tool to punch hole according to the material of wall

Size of our welding screen product:
(1)Width: 100mm to 400mm
Thickness: 1mm to 4mm
Length: 50 Meter
(2)Colors: Dark Bronze, Dark Green & Ultra Violet Red.
The feature of Welding PVC Curtain:
(1)Save energy, protect workers and reduce noise in working place.
(2)Reduce incidental effects of bright, ultra violet light from welding areas.
(3)Protect individuals from ultraviolet radiation, sparks and spatter.
The advantages of Plastic Flexible PVC Strip Curtain:
(1)High intensity, high degree of transparency
(2)High weather resistance, better physical properties
(3)Non-toxic; No crack; No bubbles; No smell and pollution
(4)Health and good surface brightness
(5)Waterproofing; Sound-insulated
(6)Fire retardant and self-extinguishing
They Are Ideal For:
(1)Pharmaceutical Industries; Hotels & Kitchen Area
(2)Packaging Industries; Manufacturing Plants
(3)Processing of Agricultural Products; Engineering Industry
Technical Data:

PROPERTY	Standard	Unit	Value
Shore A hardness	EN ISO 868	Sh A	80
Tearing resistance	DIN 53515	N/mm	50
Tensile strength at break	ASTM D 638 EN ISO 527	N/mm²	16
Elongation at break		%	340
Residual elong. (after break)		%	68
Thermal conductivity	ASTM C 177	W/m.K	0,16
Cold bend brittle temperature	ISO 8570	°C	-35
Usage temperature range	EN 1876	°C	-15/+50
Vicat softening temperature	EN ISO 306	°C	50
Specific heat capacity	ISO 11357	kJ/kg.K	1,6
Sound reduction	DIN 52210	dB	>35
Reaction to fire	CFM
Light transmittance	ASTM D 1003	%	85
UV/IR filter	AWS	Filter	-
UV resistance	ISO4892	-	Yes
Charge buildup	IEC 61087	Sparks	Yes
Surface resistivity	IEC 60093	.1012 Ω/	40
Water absorption	EN ISO 62	%	-0,2
Density	ASTM D 792	g/cm3	1,22

About us
Established in 1999, "Coseal" operates its business by manufacturing & supplying PVC strip curtains & Flexible PVC Sheet, which can be widely used in food and freezer industries as well as other general fields.
Our first aim is our esteemed clients and their satisfaction. We always make in time delivery and competitive price as well as high safety quality products.
