Air Filter Element

Product Description

Product Description

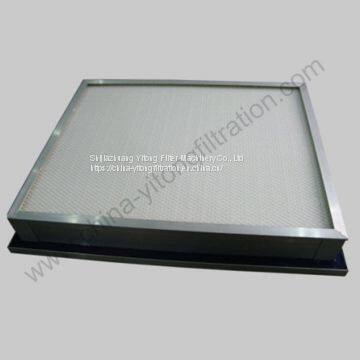

Air Filter Element
Product Description
YTYG series liquid groove seal high efficiency filter includes upper and side groove seal two types. Mainly applying in air supply of high grade cleanliness plant, such as pharmacy, medical, food, electronic and other industries. Convenient installation, good seal performance.
Product Advantage of Filtration Cartridge
Framework: aluminum alloy.
Filter material: high quality glass fiber filter material.
Segment material: thermosol.
Sealing type: imported liquid groove sealant.
The maximum working temperature: 80℃.
Technical parameter of Filtration Element

Dimension(mm)	Filtration efficiency	Primal resistance（Pa）	Rated air volume（m³/h）
400*400*90	H13、H14	≤220	500
550*550*90	H13、H14	≤220	1000
630*630*90	H13、H14	≤220	1500
400*400*90	H13、H14	≤220	500
550*550*90	H13、H14	≤220	1000
630*630*90	H13、H14	≤220	1500
Note: the above dimensions are normal size, which can be customerized according to requests and drawings.

---
