Product Details
Product Description
Product Description

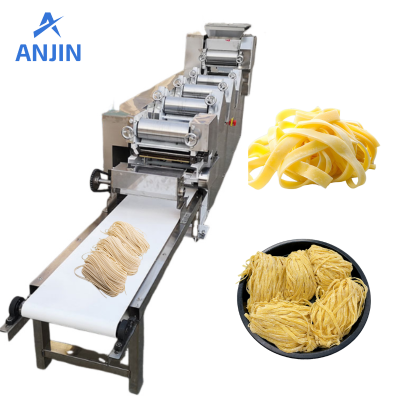

This noodle-making machine can make fresh or wet noodles and dry stick noodles with different capacities. The more rollers with the equipment the more tasty of the finished noodles. By replacing the knives with different shapes or sizes of noodles.
Feature of Fresh Noodle Making Machine:
1. Full steel gear transmission, full bearing, small dimension, and compact structure;
2. Automatic conveying in the entire process, forming for one time, automatic cutting and hanging on rod and rising.
3. Noodles making machine is fitted with a heavy-duty mild steel fabricated structure;
4. Easy operation, rapid production, and the thickness of noodles is adjustable;
Usage scenarios
Production of dried noodles, multi-grain noodles, vegetable nutritious noodles, colored noodles, hot dry noodles, hand-rolled noodles
Supporting equipment:
Flour mixer, elevator, noodle proofing machine, dryer, noodle steamer, Dry noodle cutting machine, packaging machine etc.
Finished Product:
Parameter datas:
| Model | Capacity | Voltage | Power | Dimension | weight |
| AJ-5-250A | 140-160Kg/h | 380V50HZ3P | 3kw | 1700×680×1370mm | 510kg |
| AJ-6-260A | 200-260Kg/h | 380V50HZ3P | 3kw | 2200×700×1370 | 680kg |
| AJ-6-300A | 250-300Kg/h | 380V50HZ3P | 4kw | 2200×750×1370 | 700kg |
| AJ-7-300A | 250-300Kg/h | 380V50HZ3P | 4kw | 2900×750×1370 | 750kg |
| AJ-7-350A | 280-320Kg/h | 380V50HZ3P | 4kw | 2900×800×1370 | 780kg |
| AJ-9-300A | 250-300Kg/h | 380V50HZ3P | 6kw | 4400×800×1370 | 1050kg |
| AJ-9-350A | 280-350Kg/h | 380V50HZ3P | 6kw | 4400×850×1370 | 1200kg |
Common Knives specification:
Flat knives:0.75mm, 1mm, 1.25mm, 1.5mm, 1.75mm, 2mm, 3mm, 4mm, 5, 6, 8, 10, 12, 15, 20mm;
Round knives: 1.25mm, 1.5mm, 1.75mm, 2mm, 2.5mm;
(Three flat knives are standard when shipped from the factory, and the price difference needs to be paid when replacing other knives)
>>
