The advantage of Dongfeng 4 Tons Flatbed Wrecker Truck1. Good Quality
2. Lower Price
3. Powerful Traction
4. Convenient Operate System
5. High Safety Factor
6. High Driving Comfort
Description

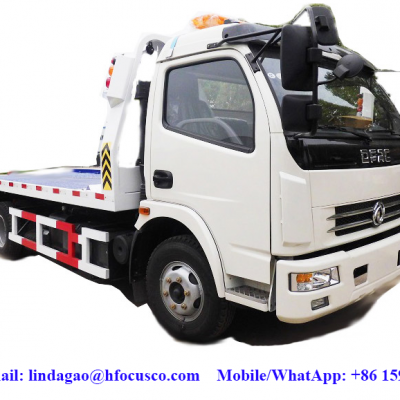

| Dongfeng One Carry Two Recovery Truck
|
Drive Model
| 4x2
|
Vehicle Main Dimensions
| Dimensions(L x W x H)mm
| 7420X2300X2540
|
Wheel base (mm)
| 3800
|
Overhang (front/rear) (mm)
| 1180/2440
|
Wheel track (front/rear) (mm)
| 1835/1640
|
Approach/Departure angle(°)
| 20/10
|
Weight in KGS
| Curb Weight
| 5495
|
GVW.
| 7490
|
Max. driving speed(km/h)
| 90
|
Engine
| Model
| CY4102
|
Type
| 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
Horse Power(HP)
| 120HP
|
Emission standard
| Euro II
|
Gearbox
| 5 forwards & 1 reverse
|
Clutch
| Reinforced diaphragm clutch
|
Steering Gear
| Power steering, hydraulic steering with power assistance
|
Fuel tank (L)
| 180
|
Tire
| 7.50R16 , 6pcs + 1 spare tire
|
Brakes
| Exhaust brake
|
UPPER
|
Platform Organ
| LXW(mm)
| 5400x2100
|
Platform power stroke(mm)
| 2680
|
Min angle(°)
| 7.6
|
Max lifting capacity(kg)
| 3000
|
Winch rating pulling capacity(kg)
| 4000
|
Length of steel(m)
| 21
|
Hoisting Organ
| Max under-hoisting capacity(mm)
| 1300
|
Rating under-hoisting capacity(mm)
| 1005
|
Fully extended max under-hoisting capacity(mm)
| 700
|
Rating under-pulling capacity(kg)
| 5000
|
With auxiliary wheels, hooks, bundling belt, automatic sliding plate;
|
