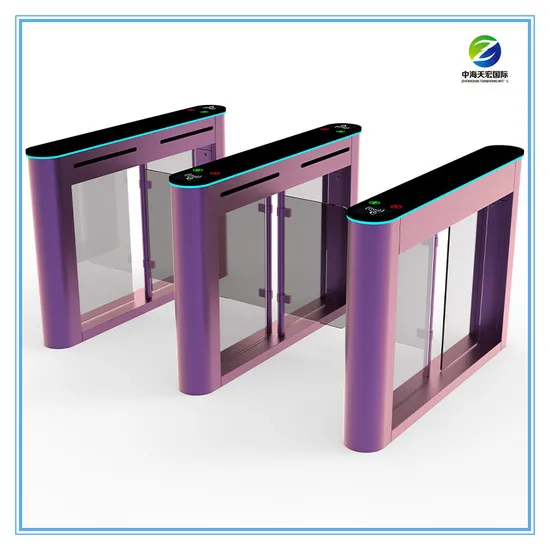

RFID Barcoder Automatic Swing Gate Turnstile with Powder Coating

Product Description

The RFID Barcode Automatic Swing Gate Turnstile is a sophisticated entry control system featuring RFID technology. Utilizing RFID barcode scanners, it ensures secure access by authenticating user credentials. The automatic swing gate design allows for smooth and controlled pedestrian passage, preventing unauthorized entry. This turnstile combines the convenience of RFID technology with the efficiency of automatic gates, making it suitable for various applications such as corporate offices, government buildings, and public facilities. With its reliable and user-friendly features, the RFID Barcode Automatic Swing Gate Turnstile provides an effective solution for access management, enhancing security in environments with moderate to high foot traffic.
Technical Parameters
1. Configuration: Mechanism, Housing, Control board, Power supply
2. Power Consumption: Static state: single core 60W; dynamic state: single core 160W.
3. Power Input:AC220V±10%,50HZ
4. Output:DC5V,DC12V,AC24V
5. Drive Mode: DC electric motor
6. Interface: one Rs 232 interface, two card reader signals (passive), one fire alarm interface.
7. Overall Dimension:1500L x 185W x 1020H (mm)
8. Following Speed:35 people/minute in normal mode, 50 people/minute in fast mode
9. Service Life: Five millions continuous rotation
10.Operation Direction: Single/bi-directional
11.Working Environment: Indoor
12.Lane Width:500mm-550mm
13.Opening Angle:90±5°
14.Noise:≤50dB
15.Opening and Closing time: 1 second
16. Net Weight: Single core 70 KGS/set; double cores 100 KGS/set

---
