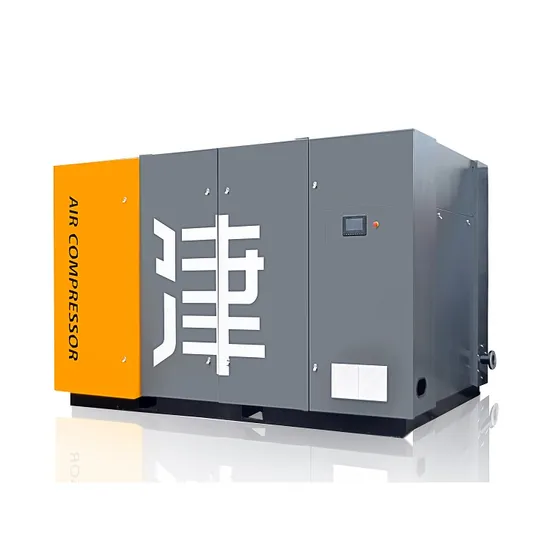

Two-Stage Compression Screw Air Compressor 15kw Permanent Magnet Frequency Screw Air Compressor with Two Stages Air-Compressors

Product Description

Two-stage compression permanent magnet VSD screw air compressor

♦ Intelligent Touch-Screen Design

♦ Direct-driven

♦ Air Cooling

♦ 7/8/10/13bar

♦ Air Filter

♦ Stainless Steel

♦ Piping Design

Advantages
1. The most advanced split type design2. The air end and motor are connected by the coupling, free from the trouble of maintenance.3. Double screw highly efficient air end design of large rotor, larger compressed capacity, longer service life with imported SKF bearings.4. Permanent magnet motorThe motor is made of the special material of rare-earth permanent magnet, strong magnetic field, large overload torque and small current while starting and operation,The special rare-earth permanent magnet with the special design of the rotor, makes the efficiency of the motor 10%-15% higher than the same horsepower induction motor.Design of the lower temperature, the raise temperature of the motor<60K, greatly improves the service life and service factor.Soft starter by the inverterAvoiding the strong mechanical shock while starting, prolonging the life of machine, reducing the maintenance, improving the reliability. So it can save 30% energy.

Model	Pressure (mpa)	Displacement (m³/min)	Power (kw)	Dimension (mm)	Weight (kg)	Outlet Size
2PV-0.7/15	0.7	0.7-3.0	15	1450*780*1180	660	G1-1/4"
2PV-0.8/15	0.8	0.7-2.9
2PV-1.0/15	1.0	0.6-2.4
2PV-1.3/15	1.3	0.5-2.2
2PV-0.7/18.5	0.7	0.9-3.8	18.5	1450*780*1180	680	G1-1/2"
2PV-0.8/18.5	0.8	0.8-3.5
2PV-1.0/18.5	1.0	0.7-2.9
2PV-1.3/18.5	1.3	0.7-2.7
2PV-0.7/22	0.7	1.1-4.5	22	1500*956*1219	730	G1-1/2"
2PV-0.8/22	0.8	1.1-4.3
2PV-1.0/22	1.0	0.8-3.5
2PV-1.3/22	1.3	0.7-2.9
2PV-0.7/30	0.7	1.6-6.8	30	1650*880*1280	980	G1-1/2"
2PV-0.8/30	0.8	1.5-6.4
2PV-1.0/30	1.0	1.2-4.9
2PV-1.3/30	1.3	1.1-4.3
2PV-0.7/37	0.7	1.9-7.5	37	1800*1254*1560	1080	G1-1/2"
2PV-0.8/37	0.8	1.8-7.4
2PV-1.0/37	1.0	1.5-6.3
2PV-1.3/37	1.3	1.4-5.6
2PV-0.7/45	0.7	2.3-10.2	45	2150*1410*1640	1980	G2"
2PV-0.8/45	0.8	2.2-9.7
2PV-1.0/45	1.0	1.9-7.8
2PV-1.3/45	1.3	1.6-6.5
2PV-0.7/55	0.7	3.02-13.1	55	2150*1410*1640	2180	G2"
2PV-0.8/55	0.8	2.8-12.5
2PV-1.0/55	1.0	2.3-10.1
2PV-1.3/55	1.3	1.9-8.6
2PV-0.7/75	0.7	4.2-17.5	75	2250*1410*1640	2280	DN65
2PV-0.8/75	0.8	3.8-16.5
2PV-1.0/75	1.0	3.4-13.6
2PV-1.3/75	1.3	2.9-11.2
2PV-0.7/90	0.7	5.3-20.8	90	2650*1654*1870	3200	DN65
2PV-0.8/90	0.8	4.9-20.2
2PV-1.0/90	1.0	4.1-16.9
2PV-1.3/90	1.3	3.9-15.3
2PV-0.7/110	0.7	6.1-24.5	110	2720*1800*1900	3360	DN80
2PV-0.8/110	0.8	5.8-23.5
2PV-1.0/110	1.0	5.1-20.1
2PV-1.3/110	1.3	4.4-17.6
2PV-0.7/132	0.7	7.2-30.1	132	2850*1854*1900	3450	DN80
2PV-0.8/132	0.8	6.9-28.5
2PV-1.0/132	1.0	6.1-24.1
2PV-1.3/132	1.3	5.4-21.3
2PV-0.7/160	0.7	8.8-35	160	2866*1730*1918	3850	DN80
2PV-0.8/160	0.8	8.1-33.6
2PV-1.0/160	1.0	7.7-31.1
2PV-1.3/160	1.3	6.5-26.3
2PV-0.7/185	0.7	10.7-42	185	3200*1730*1918	3990	DN100
2PV-0.8/185	0.8	10.3-40
2PV-1.0/185	1.0	8.8-35.5
2PV-1.3/185	1.3	7.5-32.4
2PV-0.7/200	0.7	10.7-44.8	200	3300*2060*2280	5890	DN100
2PV-0.8/200	0.8	10.3-43
2PV-1.0/200	1.0	9.2-38.6
2PV-1.3/200	1.3	7.9-33
2PV-0.7/220	0.7	11.7-48.0	220	4000*1780*1968	6500	DN125
2PV-0.8/220	0.8	11.3-47.2
2PV-1.0/220	1.0	9.8-41.2
2PV-1.3/220	1.3	9.1-38.1
2PV-0.7/250	0.7	13.2-55.3	250	4000*2120*2200	6800	DN125
2PV-0.8/250	0.8	13.0-51.0
2PV-1.0/250	1.0	11.0-46.9
2PV-1.3/250	1.3	9.6-41.2
2PV-0.7/280	0.7	14.4-60.0	280	4000*2120*2200	7200	DN125
2PV-0.8/280	0.8	13.2-56.5
2PV-1.0/280	1.0	12.2-51.5
2PV-1.3/280	1.3	10.8-46.5
2PV-0.7/315	0.7	16.2-67.5	315	4450*2200*2500	7800	DN125
2PV-0.8/315	0.8	14.6-62.0
2PV-1.0/315	1.0	13.2-56.5
2PV-1.3/315	1.3	12.2-51.5
2PV-0.7/280W	0.7	14.4-60.0	280	3400*2100*2200 (Water coling)	7200	DN125
2PV-0.8/280W	0.8	13.2-56.5
2PV-1.0/280W	1.0	12.2-51.5
2PV-1.3/280W	1.3	10.8-46.5
2PV-0.7/315W	0.7	16.2-67.5	315	2850*2050*2120 (Water coling)	7800	DN125
2PV-0.8/315W	0.8	14.6-62.0
2PV-1.0/315W	1.0	13.2-56.5
2PV-1.3/315W	1.3	12.2-51.5

Tianjin Jinjing Gas Compressor Manufacturing Co.,Ltd. founded in 2005, is a leading high technology of machine and equipment manufacturer integrating the design, R&D, production, sales and service for air compressors & Mining Equipment. Adopting advanced technology, design concept and quality control, and we are able to provide customized products to meet customers' OEM needs.
Our company has more than 520 employees, including 86 senior technicians and professional engineers. Our technical team provides our customers with professional air system solutions. With the total 15000 square meters of the facility, four modern advanced production lines are built up to ensure production capacity to meet customer requirements.
Our company has been awarded the honorary title of "Tianjin high-tech enterprise" and our products enjoy high honors in the industry. Our company has the ISO9001 certification and was awarded the qualification certificate of equipment through military contracts in 2018.
We offer the following products and services:
1. Screw air compressor
1.1 Oil-free screw air compressor
1.2 Oil-injected air compressor
2. Reciprocating piston air compressor
2.1 Piston air compressor
2.2 Oil-free piston air compressor
2.3 Piston medium & high-pressure air compressor
3.Portable air compressor & Mining Equipment
3.1 Diesel or Electric portable screw air compressor
3.2 Air Pick, Rock Drill, DTH Drilling Rig, Crawler Drilling Rig
4. Air compressor accessories
4.1 Freeze or Adsorption compressed air drier
4.2 Compressed air filter or tank
4.3 Lubrication oil
We have a complete system of after-sales service and quality assurance. The company's material purchase, inspection, manufacturing, installation, and testing are strictly in accordance with the ISO procedures. which will ensure each compressor has reliable quality and has a complete record to trace, if needed.
Q: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. Q: How can we start order with your factory? A: First, leave us an inquiry and advise which item you're interested, and then we will contact you in 24 hours. You're so kind if provide all detailed information, will better for us to know exactly what you need. Q: What are your MOQ? A: Different products have different MOQ, most is 1 set. Q: What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages. Q: How about your delivery time? A: Generally, it will take 90 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q: Do you a trade company or real factory? A: We are 100% factory; we located in Tianjin city, China.

---
