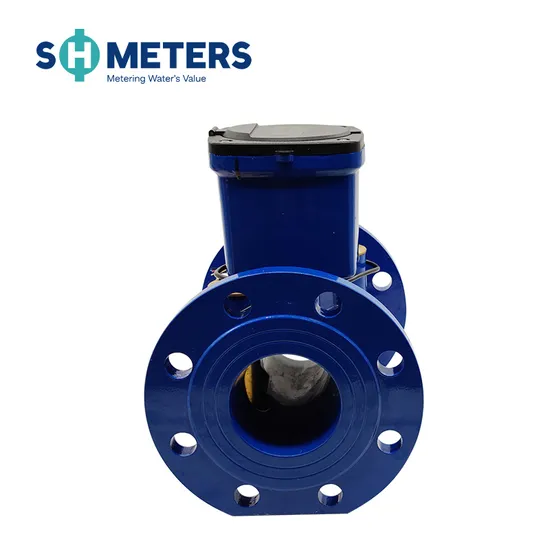

Large Diameter 150mm Ultrasonic Intelligent Water Meter

Product Description

Large Diameter 150MM Ultrasonic Intelligent Water Meter System structure diagram as follows
· Server send commands to the data concentrator through network;
· Concentrator transforms the received commands into radio signal and send the signal to the water meters;
· Water meters respond and execute the commands accordingly;
· Water meters deliver the result or data back to the management center as per the original route after the actions finished.
Service
· Quality Gurantee: Water meter for 1 year;
· Support install guide & test in site;
· Date sheet can be sent to other management system easily.
Overview
The loss caused by the leakage of water supply pipe net is very alarming, especially when the pipelineburst suddenly. Take a DN300 pipe as an example. After the pipe burst, the loss in one hour is as highas 1250 cubic meters of water. lf it can't be repaired in time, the burst water will wash the ground andcause the road collapse,which will cause casualties and property losses.
Our pipe network monitoring system can quickly locate the pipeline to be repaired and send out the alarmmessage after the pipe burst. Our users can organize the emergency repair at the first time to recover theloss and eliminate the hidden danger.
This system uses a high range ratio ultrasonic water meter (r400), which can accurately measure the waterflow through the main pipeline, and provide the calculation basis for billing and pipeline leakage.
S8 Ultrasonic water meter's intelligent measuring instrument is consist by the temperature sensor , flow sensors and calculators.Could provide important application and data for many applications in the pipeline.
Features
Material: cast iron, ductile iron
Applicable scene: home main pipe, apartment main pipe, domestic residential water supply main, leak, treatment plant, agriculture, irrigation, ground, aquaculture, commercial, general household, industrial, potable
Technical data conform to international standard ISO 4064.
Communication: rs485 modbus, GPRS
Fitting: Pressure sensor, battery, lcd display, reading device, data logger, Flange set, liquid turbine, user interface unit
Features long service time and high accuracy
Double-flange dry-type digital water meter, used in industrial pipelines, suitable for high pressure environment, can choose whether to install pulse output
With remote transmission system software to support reading and monitoring
Provide a complete software metering and charging solution
Automatic leak measurement
Outline dimension

Nominal Diameter	Length L	Width B	Hight H	Flange Connection
mm				Flange Diameter	Bolt Ciecle Diameter	Bolt Size-M
DN50	200	170	215	170	125	4-M16
DN65	200	185	220	185	145	4-M16
DN80	225	200	235	200	160	8-M16
DN100	250	220	255	220	180	8-M16
DN125	250	250	285	250	210	8-M16
DN150	300	285	335	285	240	8-M20
DN200	350	340	405	340	295	12-M20
DN250	450	405	470	405	355	12-M24
DN300	500	460	525	460	410	12-M24

---
