High Quality Dried Stick Noodles Production Line Noodle Making Machine

Product Description

Product Name:High Quality Dried Stick Noodles Production Line Noodle Making Machine

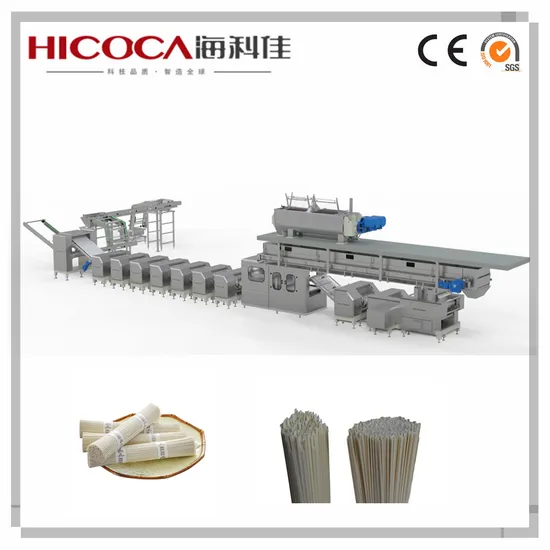

The noodle intelligent automatic producing line includes automatic powder supply, automatic liquid supply, high-speed water powder mixing, compound calendering, bionic kneading, nine continuous calendering, automatic cutting & loading, intelligent drying, packaging (paper packaging, plastic packaging, multi-scale bundling) and robot intelligent palletizing.
We provide customers with the whole process of turnkey engineering from plant layout design, production prediction, product structure adjustment, equipment selection and after-sales maintenance.
Production process: automatic mixing of flour, water and salt, noodles, rolling, cutting, automatic feeding, drying, cutting
The production line requires 2 people,
Output: production line 1 ton/8 hours
Total power: 80kw
Steam about 700 kg per hour
Technical Specification:

NAME	Item	NOTE
Alkali water tank	YSH100	Volume:1000L Material:TANK BODY SUS304# Power:1.5KW,Pump:0.75KW
Water measuring & spraying device	YSJ10	Volume: 110L Power: Pump 0.75Kw With liquid level display ,round type tank,stainless.
Double-shaft dough mixer	HMJ200	Motor Power: 6.5/8 Kw Door opening by manual Volume: 150KgL/per time Material:Noodle contact part: stainless steel
Powder falling hopper	LF350	Material:stainless steel Make according to the actual installation size
U type ripen machine	XHJ200	Power: 4Kw Size: 1600mm×800mm×750mm Volume: 200KgL/per time Materials: contact part: stainless steel
Compound and continually rolling machine	MT7-50	Motor power: 11 kw, Roller width:350mm,total 7 pairs, As the gradation, the roller pair is: First pair roller: Φ180x350mm Second pair roller: Φ180x350mm Third pair roller: Φ240x350mm Fourth pair roller: Φ180x350mm Fifth pair roller: Φ180x330mm Sixth pair roller: Φ162x330mm Seventh pair roller:Φ162x330mm Frequency control.
Rod feeding Machine	GT450	Total Power: 1.5KW
Noodle cutter	ZJQ800	Power: 1.1kw Noodle length can be adjusted, Frequency control.
Rod elevating device	SJ350	Carbon steel.
Drying device	PHF30	Power: main1.1 kw×2 ( Frequency control) industrial fan 0.75 kw×13, Moisture removal fan 0.6kw×6 Drying time:~4hrs. 5row , length 50m stainless steel rods,4000 pcs.
Rod unloading	XJ350	Power 1.5kw ( Frequency control) carbon steel
Ration length cutting Machine	ZQM50A	Power: 0.8kw Noodles length 130mm-298mm, adjustable
Electricity control system		From Roller to chamber ,main transmission adopts frequency control , PLC control ;domestic electrical components , not including the cables.

Details:
1. Automatic splicing device: The splicing belt conveyor automatically rises and falls. When the machine is turned on, the belt conveyor automatically rises, so that the dough sheet automatically enters the pressing roller. When the dough sheet runs normally, the belt conveyor automatically falls to the stop position.
2. Centralized lubrication and automatic oil supply system: The whole set of equipment is equipped with a centralized lubrication system, the program sets the amount of grease filling and the filling cycle, and the automatic oil supply device automatically completes the filling of lubricating grease according to the program.
3. Convenient scraper pressing mechanism: The scraper is pressed by the chain and one-way sprocket. When cleaning the hanging knife, the tensioning chain can be easily opened, and the scraper can rotate freely, which is convenient for cleaning.
4. Two-position discharge port: Two discharge gates are set at the discharge port of the horizontal double-shaft homogenizer and the abdomen of the pot body to discharge the residual material in the mixing pot, reducing the time for cleaning the residual material. Improve work efficiency.
Shipping
About us:
DIRECT factory
We're a DIRECT factory specialized in designing and manufacturing full sets of intelligent food production and packaging assembly lines for dried and fresh noodle, spaghetti, rice noodle, pasta, snack food and steamed bread.
GB/T2949-2013
HICOCA has independent manufacturing base for large scale equipment, which is equipped with advanced manufacturing equipments such as laser cutting center from German, standing processing center, OTC robot welding, FANUC robot. HICOCA has import and export business right, established not only professional research & development, design and production system, but also client-centered marketing and service system. HICOCA has attained ISO9001 certification, and GB/T2949-2013 Enterprise Intellectual Property Management System, still now HICOCA possessed more than 200 patents, 2 PCT patents, which include 30+ invention patents, 9 software copyrights, 2 trademark privileges. Numbers of HICOCA's products are internationally advanced, as a result, HICOCA has gained a global sales network reaching more than 11 countries and regions. Meanwhile we have established partnership with enterprises from Netherlands, Japan and South Korea to develop food packing technology.
Pls feel free to contact us if you're interested in any of our products.
Why choose us:
1.We are manufacturer and also have our own foreign trade team.
2.We have professional R&D staff who can make different design for your special request
3.Our professional workers will make the perfect machine for you
4.We can send our engineer to your country for assembling and traning.
5.We can provide competitive price and high quality machine to you.
6.We provide customers with the whole process of turnkey engineering from plant layout design, production prediction, product structure adjustment, equipment selection and after-sales maintenance.
Our service:
Pre-sales service: With project planning department, the technical personnel will match the request of pre-sales customer's factory layout designing, pre-production forecast, product structure planning, equipment selection and other services. There are three major marketing areas in the east, central and western regions. One-on-one service needs of a customer.

After-sales service can provide on-site equipment installation guidance, free training for users to operate equipment and maintenance. HICOCA has set up a professional team of service engineers to solve all kinds of problems raised by users through remote operation, telephone communication, video connection, live connection, on-site service, etc., and provide customers with accurate service by establishing customer files to solve customers' worries.

HICOCA launched the after-sales spare ponentes store strategy, according to the return visit at regular intervals, we will record the problems raised by customers and form a benign communication mechanism, so we can suggest solutions immediately to client's problems. We have also developed an after-sales engineer training mechanism to continuously improve the technical level, service level and communication skills of the engineers.
Our Customer
FQA:
1.Q: I am a fresh man in noodles industry and without any experience .A: The key is you must have passion only, the rest is our job : site vist,design, feasibility Report,cost analyst,deal or makefriend only,installing,training,servicing of noodle machine,free technical formula available.2.Q: How about your noodle machine quality?A: Seeing is beliving , we not only accept inspection by third party ,but also quality guarantee deposit , extended guaranteeperiod with low charge.3.Q:Is it possible to visit you and see your running factory?A: Of course , you can visit our domestic customer's noodle factory and oversea's both.4.Q: How many countries have you exported to?
A: we have exported to more than 20 countries, such as : Canada, Turkey, Malaysia, Holland, India, etc.
5.Q: What about aftersales service?
A: we have 30 aftersales service staff, who have experiene to provide service overseas to assemble the machines and train the customers' workers when machines arrive.
6.Q: How does your factory control quality?
A: Quality is the most important for us, we has been accreditation by several certification authorities domestically and internationally, including China Compulsory Certification (CCC), European Union quality approval (CE/RoHs etc) and USA quality approval (ETL/UL).

---
