China Metal Flat Bed Horizontal Turning CNC Lathe Machine Ck6150 High Precision Lathe Machine

US$9,000.00-16,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK6150
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
China Metal Flat Bed Horizontal Turning CNC Lathe
Swing Over BedTmm
500
Swing Over Cross SlideTmm
260
Distance Between CentersTmm
750
Spindle BoreTmm
52
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8458110090
Production Capacity
200

Packaging & Delivery

Package Size
220.00cm * 175.00cm * 170.00cm
Package Gross Weight
1800.000kg

Product Description

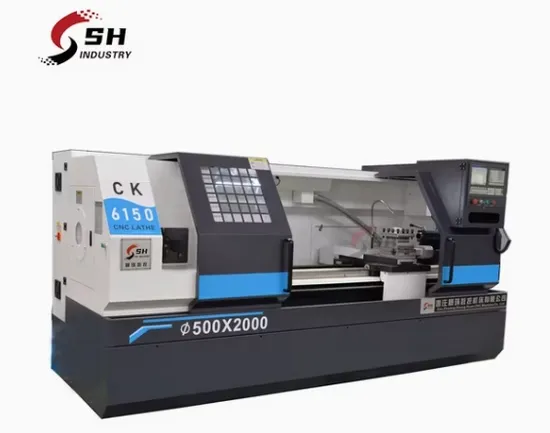

China Metal Flat Bed Horizontal Turning CNC Lathe Machine CK6150 High Precision Lathe Machine
Product Description

CNC Lathe Use:
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
Technical Specifications:
Standard configuration:
360mm bed width,
4 station electric tool post
Spindle hole 52mm
Manual chuck, manual tailstock
Low-high 2 steps speed
GSK control system
Optional configuration:
Hydraulic chuck,
Hydraulic tailstock,
6/8 station electric turret,
Spindle hole 80mm,
Siemens/ Fanuc control system
Independent spindle
Servo main motor.
Auto chip conveyor
SPECIFICATIONS
SPECIFICATIONS Units CK6150
Swing over bed mm 500
Swing over cross slide mm 260
Distance between centers mm 750/1000/1500/2000
Spindle bore mm 52(Optional 80)
Spindle bore taper - MT6
Spindle nose type - C6
Spindle speed steps - Manual 2 steps
Spindle speed range rpm L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turret/tool post - Electric 4 position
Tool size mm 25 x 25
X axis travel mm 280
Z axis travel mm 750/1000/1500/2000
X axis rapid traverse mm/min 6000
Z axis rapid traverse mm/min 8000
Tailstock quill diameter mm 65
Tailstock quill taper - MT5
Tailstock quill travel mm 130
Main spindle motor kw 5.5
Coolant pump motor kw 0.09
Weight for 750 kg 1800
Weight for 1000 kg 1900
Weight for 1500 kg 2000
Weight for 2000 kg 2100
Dimension for 750 mm 2200x1700x1750
Dimension for 1000 mm 2500x1700x1750
Dimension for 1500 mm 3000x1700x1750
Dimension for 2000 mm 3500x1700x1750

Detailed Photos
Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
