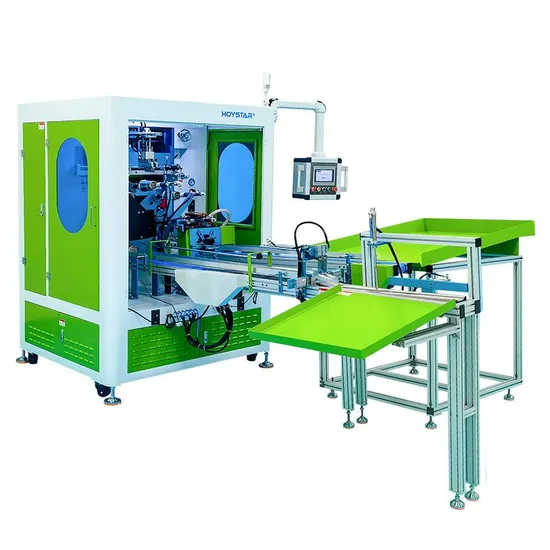

Full Automtic Multicolor Cups Screen Printing Machine

Product Description

Product Description Application:
This kind screen printing machine is specially designed for printing the Disposable Cup(plastic cup and paper cup)
It is full automatic type, auto loading--auto printing--auto unloading.
Before print: Corona treatment system
After print: With Led UV curing

Technical parameter:
1) Max.printing speed		2500-4000pcs/Hr
2) Power		220V 50-60MHZ | 7KW
3) Air pressure		5-7bar
4) Loading mode		Automatic
5) Unloading mode		Automatic
6) Drive mode of rotary table		Electric
7) Transeversa driving style		Pneumatic
8) Transeversa stroke		350mm
9) Max printing diameter		¢100mm
10) Max length of products		200mm
11) Before printing: With Corona treatment
12) After printing: With LED UV curing

Feature:
1) Fully automatic, no need person to operate
2) Locating automatically to keep printing precision
3) No product without printing system, keep printing stable
4) High and strong vacuum system, keep printing precision
5) PLC and touch screen control system. Digital control system,can set parameter randomly,operate easily with big function
6) The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even
7) Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly
8) With emergency switch to keep safe and stable
9) Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency
10) The loading system is rotary type. like this,it can save time Detailed Photos
With Corona treatment system Different sizes of cups require different fixtures to be made With UV LED curing system Automatic stacking and counting Suitable for print paper cup Suitable for print plastic cup

---
