420-480MHz 50W Anti-Uav Jamming Jammer Signal Blocker PA Amplifier Module

US$148.00
1-99 Pieces
US$138.00
100-499 Pieces
US$128.00
500-999 Pieces
US$118.00
1,000+ Pieces

Basic Info.

Model NO.
SGPA0450M-60-K50W
Support Network
GPRS
Information content
Data
Certification
ISO
Condition
New
Product Name
Uav Drone Jamming Module
Keywords
Jammer Module
Gain
50dB
Power
50W
Supplier Type
OEM/ODM
Warranty
1 Year
Application
Drone Signal Interference Shielding
Transport Package
Carton Packaging with Foam
Specification
128*65*18mm
Trademark
ZLD
Origin
China
Production Capacity
5000/Year

Product Description

Product Description

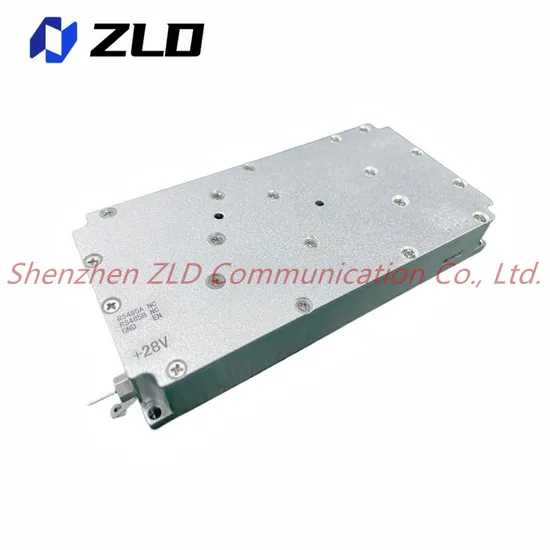

420-480MHz 50W Anti Drone Module Uav Anti System RF Module
Product Features
• 50W RF Signal Jammer Power Amplifier.
• 420~480MHz Operation Bandwidth.
• Comes with signal interference source.
• Power Amplifier with output short circuit or open circuit protection
Product Description
• The power amplifier module Applied to drone countermeasures and signal shielding.
• High efficiency power amplifier module, attached to an aluminum sub carrier.Product Parameters
Electrical Specifications
ParameterSpecificationRemark
Frequency Range420~480MHz
Saturated Output Power47±1dBm
Gain Flatness≤2.0dB
Gain Stability±1.5dBmat -25ºC~+55ºC
Power stability±1.5dBmat -25ºC~+55ºC
Output VSWR≤1.5
DC Input VoltageDC28±1.0V
Current Consumption6.5 A typ;7.5 A max.@ Pout=50W CW, 50 ohms load
Power supply portThrough-hole capacitor
Working Temperature-25~+55ºC
Monitoring interfacePHD2.0MM-2*3PIN Socket,
PIN1: RS485A;
PIN2: RS485B;
PIN3: GND;
PIN4,PIN5,PIN6: NC;
PIN6: Power amplifier enable switch,High level +5V off, low level 0V on.
LTD pilot lampPOWER:Power Supply pilot lamp;
RUN:Run pilot lamp;
ALARM:Fault alarm pilot lamp.
RF output connectorN-K
Dimension128×65×24mm
Installation Dimension122×59×24mm
Screw Size4-Ø3.2mm
weight0.45kg

Product Dimensions
