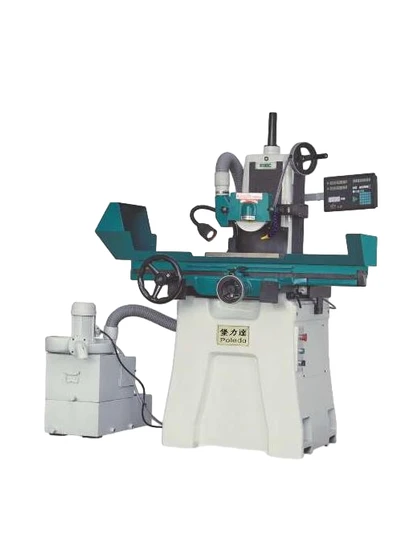

618 High Precision Vertical Precision Grinding Machine Surface Grinding Machine Manufacturer

Product Description

Product Description
Surface grinding machine features:The performance characteristics of surface grinding machine mainly include high precision, high efficiency, long service life, low maintenance cost, simple operation, safe and reliable and good structural rigidity.
High precision: surface grinding machine adopts high precision mechanical system and precision optical measuring system, can ensure the precision of processing. its machining accuracy can reach 0.000025 mm, is often used in most applications for finishing work, to remove relatively little material on the surface of the Machined part, depth of about 0.25 to 0.50 mm.
High efficiency: surface grinder spindle speed is high, processing speed is fast, can improve the processing efficiency.
Long service life: surface grinding machine mechanical parts have been carefully designed and manufactured has a long service life.
Low maintenance cost: surface grinding machine maintenance is simple, low maintenance cost.
Simple operation: surface grinding machine is simple to operate, can reduce the training time and cost of operators.
Safe and reliable: surface grinding machine has high safety, can ensure the safety of the operator.
Good structural rigidity: surface grinding machine is usually composed of bed, column, workbench, grinding wheel and grinding wheel frame, the overall structure is mostly cast iron structure, because cast iron has good shock resistance, wear resistance and thermal stability, can ensure the rigidity and stability of the surface grinding machine.
These performance characteristics make the surface grinding machine widely used in industrial production, suitable for grinding a variety of surfaces and complex forming surfaces, suitable for grinding without the need of mechanical feed.
Product Parameters
Surface grinding machine working principle:
It mainly involves the rotating movement of the grinding wheel and the feed movement of the Machined part in multiple directions.
Main movement: The grinding wheel is directly driven by the motor installed in the grinding head housing. This is the main movement of the surface grinder, which is used to grind the Machined part.
Feed movement:
Longitudinal feed: The linear reciprocating movement of the table along the longitudinal guide rail of the bed is used to control the position of the Machined part in the direction of length.
Transverse feed: The grinding head makes transverse intermittent feed along the horizontal guide rail of the table, usually completed at the end of each round trip of the table.
Vertical feed: The grinding head slide moves along the vertical guide rail of the machine tool column to adjust the height position of the grinding head and control the grinding depth.
Auxiliary system: The electrical system and hydraulic system jointly control the upper and lower, front and back, left and right movements of the table to ensure the close contact between the grinding head and the Machined part, so as to ensure the grinding quality and accuracy.

Product name	Surface grinding machine
Product model	618
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .

4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.

5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment .
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac

---
