Automatic Assembly Machine Equipment for Pencil Sharpener Sharpener Blade Screw Locking Stationery Electrical Appliances Fan

US$15,000.00
1-4 sets
US$6,000.00
5+ sets

Basic Info.

Model NO.
TL48
Application
Assembly Stationery Products
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Free Electron Laser
Laser Technology
Laser Control Fault Cutting
Condition
New
Speed
15-50 PCS/Min
Keyword
Hinge Automatic Assembly Machine
After-Sales Service Provided
Online Support
Material
Stainless Steel + Aluminum Alloy
Function
Automatic Assembly Parts of Sharpener Machine
Main Feature
Newest Design with Stability
Video Outgoing-Inspection
Provided
Marketing Type
Hot Product 2024
Core Components
PLC, Motor
Applicable Industries
Manufacturing Plant, Automation Machine
Advantage
Full Automatic or Semi Automaric
Product Name
Assembly Line
Voltage
220V/380V/50Hz(as Customers′ Request )
Machinery Test Report
Provided
Transport Package
Wooden
Specification
customization
Trademark
Tianluo
Origin
Guangdong, China
HS Code
8479909090
Production Capacity
1500/Hour

Product Description

Bespoke Automated makeup Pencil Sharpener Blade Screw Assembling Machine Double blade Pencil sharpener Assembly Making Machine
Shenzhen Tianluo established for 16 years, we successfully served over 1,500 factories and helped them realize automatic production since 2008.
The above pictures and video is just for project display, to buy or Custom automated machines pls contact us
We mainly supply: Customization of Automation Equipment, Full-automatic assembly and production equipment, Full-automatic inspection, Testing and Packing equipment, Robotics and Industrial vision integration applications.
ALL the machines are designed by components and structure of the product. According to production procedure, the following systems may be added: automatic feeding bowl, feeding line, visual inspection system, various testing system, automatic dispensing oil or glue ,welding, riveting, screwing, printing, sealing, capping, drilling, filling,tapping, milling, forming,packing... Our work is to finish the automatic streamline design and make it into a set of high-stable and hign-effective automation equipment.


Related Products
Automatic insert PIN machine Hose clamp assembly machine
Disposable infution set assembly machine Hinge assembly machine

Wall socket assembly machine Reset switch assembly machine

Product Function

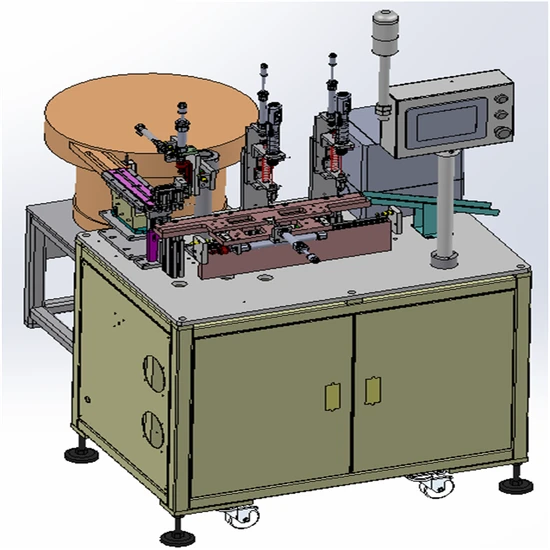

This equipment is suitable for the Screw feeding and locking assembly. It adopts PLC control system to automatically complete feeding, assembly and finished product discharge; it greatly improves production efficiency, reduces workers and reduces costs.



(It is an example. Welcome customization)
Function
automatic assembly makeup/children pencil sharpener
Application
Parts feeding, Parts Assembly, Screw Locking
Type
automatic machine
Production efficiency
1000-1500 pcs/hour
Power supply
220V 50/60Hz/4.0KW
Sizes
2100mm (L) x 1800mm (W) x 1700mm (H)
Air volume
160L/min
Weight
600Kg
Air supply
0.5-0.7Mpa
Feeding mode
Vibrating feeder



Machine Structure:
1. Electronic control: touch screen, PLC control;
2. Gas into components: cylinder drive, optical fiber sensor;
3. The vibrator automatic feeding;
4. The structure sliding part is made of high speed steel, which is stable wear and good fixity;
5. One year warranty;
6. Alarm indication;
Main Features: 1. This series machines is designed and manufactured specifically for the all kinds of screws locking assembly industry.
2. Automatic feeding, assembly/one-time processing complete.
3. Automatic detection, automatic start when material is detected, automatic stop when lack of material.
4. Automatic counting , set output.
5. Using the touch screen, intuitive interface, simple and safe operation.
6. Abnormal shutdown, automatic alarming when reporting abnormal information.

Can be designed and customized for customers, to a greater extent to meet the technical needs of different products.
