CNC Vertical Type Drilling Machine Vertical Driller Zk5140A Zk5150A Zk5140b Zk5150b

Product Description

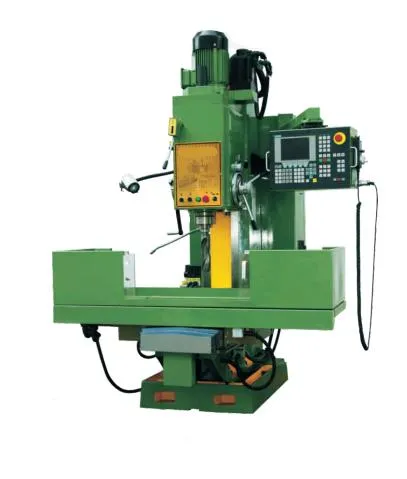

CNC Vertical Drilling Machine ZK5140A/ZK5150A/ZK5140B/ZK5150B
Suitable for machining medium and small size plates, discs,shell, complex workpieces, moulds & dies etc. in batch production.Well constructed with special casting. Highly rigid structure.Quenched turcite guideways and automatic intermittent lubrication ensure high accuracy and stable feed without creep.The spindle is driven by AC motor, featuring high speed, high torque,wide constant power range minimum thermal increase and low noise. Heavy cutting,flood coolant, wide chip disposal grooves. Equipped with RENHE CNC system, and the GSK system or HNC system can be provided on customers' order.

Specification:

Model No.	ZSK-25L	ZSK-30L		ZSK-35L			ZSK-25L-2	ZSK-25L-3
Item No.
Moving
X-axis travel	/	/		/			180 mm	230 mm
Y_axis travel	/	/		/			/	180 mm
Z-axis travel	400 mm	400 mm		400 mm			400 mm	400 mm
Distance between spindle end to table	200-600 mm	200-600 mm		200-600 mm			25-425 mm	150-550 mm
Distance spindle axis to solumn generating line	260 mm	260 mm		270 mm			260 mm	260 mm
Max.Drilling capacity	25 mm	30 mm		35 mm			25 mm	25 mm
Max.Tapping capacity	M16	M20		M24			M16	M16
Table
Table size	500x690 mm	500x690 mm		500x690 mm			250x300 mm	250X400 mm
T slot(wide Xnumber Xspace)	18x2x200 mm	18x2x200 mm		18x2x200 mm			14X3X80 mm	14X3X80 mm
Allowable load	500 kg	500 kg		500 kg			50 kg	50 kg
Spindle
Motor of spindle	5.5 kw	7.5 kw		7.5 kw			5.5 kw	5.5 kw
Speed of spindle	250-2500 r/min	250-2500 r/min		200-2000 r/min			250-2500 r/min	250-2500 r/min
Taper of spindle nose	MT3	MT3		MT4			MT3	MT3
Feed
Motor of X,Y axis	/	/		/			1.8 kw/ /	1.8 kw
Motor of Z axis	1.8 kw	1.8 kw		1.8 kw			1.8 kw	1.8 kw
Max.cutting speed	1 m/min	1 m/min		1 m/min			1 m/min	1 m/min
Max.moving speed	5 m/min	5 m/min		5 m/min			5 m/min	5 m/min
Other
Coolant motor	125 kw	125 kw		125 kw			125 kw	125 kw
Overall size	1550x1970x2200 mm	1550x1970x2200 mm		1550x1970x2200 mm			1550x1970x2200 mm	1700x1970x2400 mm
N.W	800 kg	800 kg		800 kg			900 kg	1000 kg
Type of screw	C5 grade ball screw
Type of cover	Semi-enclosed guard
Operation manual
Tool box
Heat exchanger system for control cabinet

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
