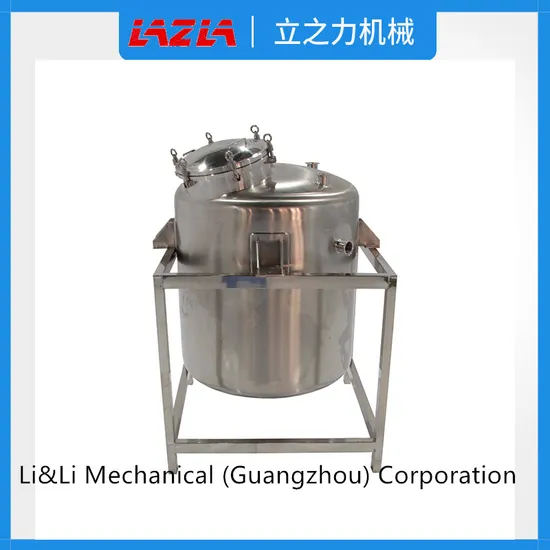

Stainless Steel Sterile Storage Tank for Dairy Product

Product Description

Food Grade Sanitary Storage Tank
Sanitary Storage Tank for Beverage Industry
Food Grade Aseptic Storage Tank
Food Grade Aseptic Storage Tank
Stainless Steel Sterile Storage Tank
Product list
1. Food pharmacy Stainless steel tanks:
Stainless steel ingredient storage tanks, stainless steel tanks with thick, dilute with stainless steel tanks, stainless steel extraction tanks, stainless steel reaction tank, stainless steel tank, stainless steel mixing tank, stainless steel seed tanks, stainless steel tanks nitric acid, acetic acid stainless steel storage tank, stainless steel tank barrels carbon disulfide, stainless steel water tower tank.
2. Wine Dairy class stainless steel tanks:
Stainless steel wine tanks, stainless steel wine tanks, stainless steel wine tanks, stainless steel milk (milk) tank, stainless steel beverage tank
3. Chemical stainless steel tanks:
Stainless steel oil storage tanks, stainless steel transport tanks, stainless steel cooling tanks, stainless steel insulated tanks, stainless steel tanks at all levels of the heat exchanger, stainless steel buffer tank, stainless steel tanks and chemical industries outdoor stainless steel pressure vessel.
Configuration of tank
1. Made of single-layer stainless steel structure.
2. Materials are all sanitary stainless steel.
3. Quick open manhole.
4. Various style of CIP cleaners.
5. Fly and insect resistant sanitary breathing cover.
6. Adjustable feet.
7. Thermometer (According to customer requirements).
8. Ladder (According to customer requirements).
9. Jacket (hollow jacket or coil pipe jacket are available).
10. Liquid level meter and level controller (According to customer requirements).
11. Agitator (Acc. To customers' requirements.)
Technical Parameter of Vertical Stainless Steel Tank

Capacity (L)	Dimension of tank (Diameter×Height) (mm)	Total height (mm)	Inlet diameter & Outlet diameter (mm)
500	840*1000	2250	38
600	920*1000	2300	38
700	990*1000	2300	38
800	950*1220	2500	38
900	1010*1220	2500	38
1000	1060*1500	2850	51
1500	1160*1500	2850	51
2000	1340*1500	2900	51
3000	1410*2000	3400	51
4000	1620*2000	3450	51
5000	1810*2000	3500	51
6000	1980*2000	3550	51
7000	1930*2440	4000	51
8000	2060*2440	4000	51
9000	2180*2440	4050	51
10000	2300*2440	4050	51
12000	2270*3000	4600	51
15000	2530*3000	4700	51

Technical Parameter of Horizontal Stainless Steel Tank

Nominal volume	Real Capacity	Nominal diameter	Mounting dimensions (L,L1,L2,L3)	Inlet diameter Dg	Spout diameter Dg	Manhole Dg	Number of seat	Remark
2m3	2.05m3	1000mm	L=2720mm L1=1500mm L3=200mm	50mm	50mm	400mm	2	The design conditions for the normal temperature and pressure, accept custom.
3m3	3.05m3	1200mm	L=2850mm L1=1550mm L3=250mm	50mm	50mm	400mm	2
5m3	5.05m3	1400mm	L=3500mm L1=1920mm L3=300mm	76mm	76mm	400mm	2
10m3	10.5m3	1800mm	L=4230mm L1=2300mm L3=300mm	76mm	76mm	500mm	2
20m3	20.5m3	2200mm	L=5630mm L1=3080mm L3=400mm	76mm	76mm	500mm	2
30m3	30.5m3	2400mm	L=7200mm L1=3600mm L3=500mm	89mm	89mm	500mm	3
50m3	50.5m3	2800mm	L=8860mm L2=2660mm L3=500mm	89mm	89mm	500mm	3
80m3	80.5m3	3200mm	L=1085mm L2=3300mm L3=600mm	89mm	89mm	500mm	3
100m3	100.5m3	3200mm	L=1334mm L2=4140mm L3=600mm	89mm	89mm	500mm	3

Food-grade Aseptic Tank Specification

Material	Model(Φ×H×δ)	Intake & Outlet diameter(mm)	Storage Capacity (L)
sus304 sus314 sus314L sus316 sus316L	Φ800×1220×1.2	DN25	500L
	Φ800×1220×1.5	DN25	500L
	Φ1000×1220×1.5	DN32	1000L
	Φ1000×1220×2.0	DN32	1000L
	Φ1200×1220×1.3	DN32	1500L
	Φ1200×1220×2.0	DN32	1500L
	Φ1300×1500×2.0	DN32	2000L
	Φ1300×1500×2.0	DN40	2000L
	Φ1300×2000×2.0	DN40	3000L
	Φ1500×1800×2.0	DN40	4000L
	Φ1600×2000×2.0	DN40	5000L
	Φ1600×2000×3.0	DN40	5000L
	Φ1800×1800×2.0	DN50	6000L
	Φ1800×1800×3.0	DN50	6000L
	Φ2000×3000×3.0	DN50	8000L
	Φ2200×2000×3.0	DN65	10000L
	Φ2500×2200×3.0	DN65	15000L
	Φ2500×3000×3.0	DN65	20000L

Our advantage
The lowest price in the same factory and service-oriented, an investment, a hundred years to benefit our company is strong in technology, reliable product quality, shelf, implementation of Three Guarantees, the agency checked, large-tonnage available to your factory processing our order!
About our company
Guangzhou Li&Li Mechanical Equipment Co.,Ltd.is a manufacturer with over 25 employees ;it was established in 2004,located in No.3-301,Da Jian Section,South of Panyu Avenue ,Guangchong Town,Nansha District,Guangzhou ,Guangdong,China.The company occupy an area of more than 2300 square meters.Our main products include :Stainless Steel Tank,Reactor,Storage Tank,IBC Tank,Filling Machine,Conveyor Equipment,Vacuum Emulsifying Mixer ,ect.

---
