Our Advantages We can support OEM/ODM service, and Assisting customers in their journey towards customized solutions:
We also have 8th 10th 11th 12th OPS Module and Thin Client, Thick Client, Digital Signage Player,Android Box, 4G/5G Cloud Mini Computer and so on. If you have inquiry of different Mini PC, freely to contact us.

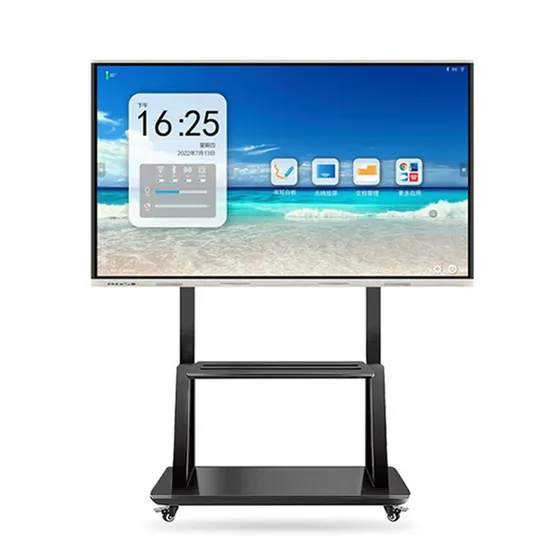

| Product series | Product series | Conference all-in-one machine |
| Model | M-75 |
| Display size | 75 inch |
| Panel parameters | Screen type | DLED Backlight source |
| Maximum resolution | 3840*2160 |
| Brightness | 400cd/m^2 |
| contrast ratio | 5000:01:00 |
| Perspective | 178°/ 178° |
| Lifespan | >30000 Hours |
| Touch parameters | Whole machine touch control | Infrared multipoint |
| operating system | Android/Windows |
| Touch control principle | Infrared induction |
| Touch power supply | USB |
| Touch mode | Fingers or any opaque object |
| Identify number of points | 20 Point Touch control |
| Touch accuracy | ±3mm |
| Linearity | ±3mm |
| Transmittance | ≥80% |
| System | Chip | MSTAR 982 |
|
|
| CPU | Tetranuclear ARMCORTEX-A55*4 |
| GPU | Mali-G52 Binuclear |
| RAM | 4G |
| Flash | 32G |
| Android version | Android 11.0 |
| Input interface | RJ45 | 1line |
| USB | 2line |
| HDMDI IN | 2line |
| RS232 | 1line |
| TF | 1line |
| Output interface | Coaxial | 1line |
| Headset | 1line |
| AV | 1line |
| TOUCH USB | 1line |
| Front Panel | Front interface | USB*3/ HDMI*1 /TYPE-C*1/reset*1 |
| TOUCH USB | 1line |
| Front button | Power, eye protection, settings, volume+, volume -, image ratio, screen recording, touch switch |
| Mini pc(Optional) | Chipset | Intel CoRE I3/I5/I7(Optional) |
| System memory | Default pre installed 4GB(Maximum support 16GB) |
| Graphics card | Integrated high-definition graphics card |
| Hard disk HDD | Default pre installed 128G SSD |
| Network card type | 1 Gigabit network card |
| Wireless network card | Supports wireless networks WiFi5 |
| Sound card | Integrated 6-channel sound effect ALC662-VDO sound card chip |
| Built in camera | Camera configuration | 1200W or 4800W (optional) default without camera |
| Camera configuration | Eight array pickup microphone |
| operating system | OPS operating system | WIN10/11 (demo version) |
| Specific definition based on customer needs |
| Other functions | Audio and video formats | 3GP, 3G2, AVI, FLV, F4V, OGG, MP4, MOV, TS, M2TS, M2T, MTS, TP, TRP, M2P, MKV, |
| | VOB, DAT, M4V, ASF, WEBM, 3GP, MP3, WAV, WMA, MPEG, PCM |
| Video Encoding Protocol | H264, H265, MPEG2, VC1, VP6, VP8, VP9, MVC,DIVX, MJPEG, AVS, AVS+ |
| Audio decoding protocol | WMA, MP3, WAV, AAC, AC3,EAC3, Vorbis, FLAC, APE, TrueHD, DRA,DTS,DTSHD |
| Subtitles and Subtitle Format | srt, sub, smi, sami, ssa, aas, lrc, idx+sub, PGS, MKV Internal subtitle, TS Internal |
| | subtitle(dvb subtitle), VOBSub(idx+sub) |
| Smooth writing | Smooth and smooth writing experience |
| Touch menu | Using gestures to access screen touch menus for menu, signal source switching, sound, brightness, and other functions |
| Temperature detection function | Display the internal temperature of the machine on the all-in-one machine menu interface. When there is a malfunction inside the machine and the temperature exceeds the standard, it will automatically shut down |
| Gesture wiping function | Wipe the text and patterns on the screen through gestures |
| | Five finger screen shutdown function |
| Wireless screen transmission function | No need for cables to project content from the computer onto the screen (optional) |
| Zoom in, zoom out, drag and drop | Adopting multi touch technology, allowing for arbitrary changes in image size and movement of image positions |
| Overall weight | Net weight | 52KG |
| Gross weight | 62KG |
| Overall packaging size | 1880*1150*210mm |
| Audio parameters | Sound power | (8Ω 10W)*2,3D surround sound |
| Power parameters | Rated power consumption | ≤300W |
| standby power | <0.5W |
| Input power supply | 100-240VAC 50/60HZ |
| Work environment | working temperature | -10ºC-50ºC |
| Working humidity | 10%-90% |
| Storage temperature | -20ºC-60ºC |
| Storage humidity | 10%-90% |
| Others | Packaging method | Honeycomb cardboard box |
| Tempered glass | Fully tempered glass |
| Related attachments |
| | Anti glare (optional) |
| Sound power | Power cord, remote control, magnetic pen |
FAQ Q1: Are you the manufacturer of the product?A: Yes, of course we are. We have own property rights factory.Q2: Can you provide OEM or ODM services?A: Yes, we are willing to provide our customers with OEM and ODM services.Q3. Can you print my logo on the product?A: Yes, we support.Q4. What is the warranty?A: 3 years warranty.Q5: If the product is out of warranty, what should I do?A: We will repair it for free.Q6: Where can I place an order?A: You can place an order on the website or contact us directly via email.If you have any other questions, please feel free to contact us.
