Basic Info.
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Laser Classification
Solid Laser
Product Name
CNC Fiber Laser Metal Cutting Machine
Function
Cutting Metal Materials
Cutting Materials
Stainless Steel Carbon Steel
Laser Power
1500W/ 2000W / 3000W
Laser Head
Auto Focus Laser Head
Voltage
3 Phases 380V 50-60 Hz
Working Area
1500mmx3000mm / 2000mmx4000mm / 2000mmmx6000mm
Working Table
Sawteeth Working Table
Laser Source
Ipg Raycus Max
Positioning Accuracy
0.03mm
Repeatability Accuracy
0.03mm
Certification
CE/ISO Certificate
Transport Package
Fumigation-Free Plywood Wooden Box
Specification
1500mm*3000mm
Production Capacity
50 Sets/Month
Product Description

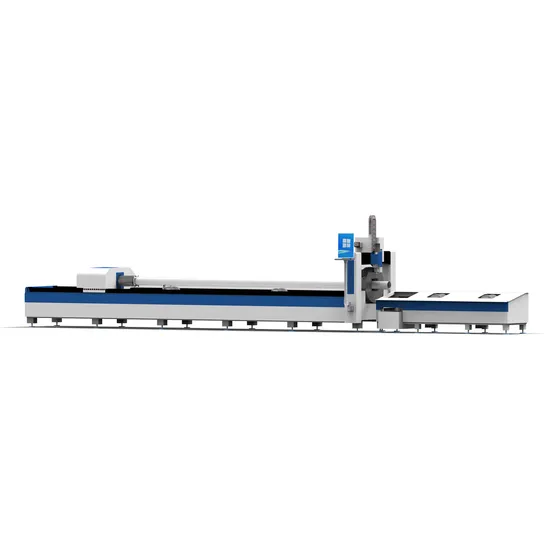

Automatic Chuck Metal Pipe Laser Cutting Machine
Machine Features:
1.High performance laser equipment, stable operating system, so that the cutting effect to achieve the best. 2. Perfect cooling, lubrication, dust removal system to ensure stable, efficient and durable machine operation.
3. Three chuck laser tube cutting machine, can real 0 tail save your materials cost.
4. Full Automatic pneumatic chuck support 20-240mm diameter round tube, and 20-240mm diameter square tube. Gear transmission system, long service life. No damage for raw tube materials.
5. Automatic height adjustment performance, keep the focal length constant, excellent and stable cutting effect.
Mode | Fast-T6000 | Fast-T9000 | Fast-T12000 |
Tube Cutting Length | 6000mm rotary | 9000mm rotary | 12000mm rotary |
Tube Diameter | 20-240mm round tube and square tube Option: 10-110mm chuck, 20-350mm chuck |
Repeat Repositioning Accuracy | ±0.03mm |
Accuracy of Positioning | ±0.02mm |
Max linkage Speed | 110m/min |
Laser Power | 1500W / 2000W / 3000W / 4000W / 6000W |
Laser Source | MAX / Raycus / IPG |
Maximum acceleration | 2G |
Upgrade | Smoke Purifier / Air compressor |
Fiber Laser Cutting Machine Description:
1. Laser power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Laser generator: RAYCUS, MAX, RECI, IPG etc. 3. Cutting materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China fiber laser machine cutting manufactuers, low cost and best quality, with CE, ISO etc certificates.
Auto-focus laser head
The laser head is made of high quality materials in accordance with advanced technology. Professional laser cutting head, stable and reliable technology, completely sealed inside the laser head, can avoid dust pollution to the optical part. The protective lens is installed in a drawer, which is convenient for replacement.
Laser cutting CNC system
The special CNC system of intelligent laser cutting machine is adopted to realize automatic edge searching, automatic typesetting, automatic focusing, automatic cutting, convenience and efficiency.A set of software specially customized for laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
High precision bed
High quality square tube welding and three pass welding process are adopted, which are sturdy and durable. The structural materials are annealed at high temperature to eliminate internal stress, so that the machine bed can maintain good mechanical properties such as tensile strength, toughness, hardness and deformation resistance.
>>
