Heavy Duty Disc Plow

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.

1LY-425

Material

Stainless Steel

Power Source

Tractor

Weight

520kg

Model

1ly-425

Working Width M

Working Depth mm

180-300

Qty. of Disc

3/4/5

Dia. of Disc

460-710

Thickness of Disc mm

Weight Kg

180-760

Linkage

Three Point-Mounted

Matched Power HP

25-130

Transport Package

Iron Frame Box

Specification

CE, RoHS, SGS, GMP

Trademark

DADI

Origin

Shandong Yucheng

HS Code

8433110000

Production Capacity

1000PCS/Year

Product Description

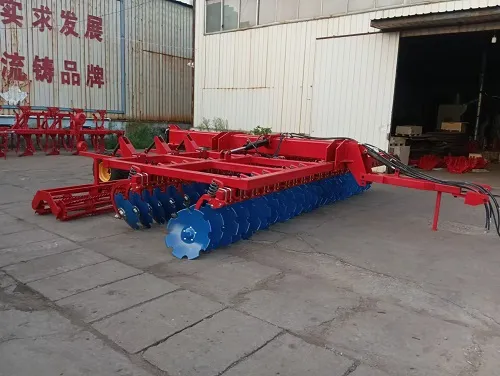

Heavy dutyOne way side disc plow
The disc plough are mainly used for tillage on dry cultivated or fallow land, especially on high yield 'manure land, wheat and rice stubble fields. They have the characteristics of small resistance and easy operation etc.

Model		1LYQ-220	1LYQ-320	1LY-325	1LY-425	1LY-525	1LY-625	1LY-530
Working width	m	0.4	0.6	0.75	1.0	1.25	1.50	1.5
Working depth	cm	20	22	25-30				30
Qty. of disc	pc	3			4	5	6	5
Dia. of Disc	mm	450	510	660				710
Weight	kg	150	180	430	520	600	700	620
Linkage	kg	IThree point-mounted		IIThree point-mounted
Matched Power	hp	12-30	25-35	50-65	65-85	80-100	100-120	90-120
