500ton Hydraulic Pre-Press Machine for Plywood Cylinders Downsides

Negotiable 1 set (MOQ)

Basic Info.

Model NO.
BY814X8/5-I
Structure
Frame Type
Pressing Shape
Flat Press
Platen Surface Pressure
Low Pressure
Pressing Layer
Single Layer
Work Mode
Period
Controlling Mode
CNC
Automatic Grade
Automatic
Certification
CE, ISO
Pressure
500ton
Transport Package
Standard Export Packing
Specification
3600x1380x3800
Trademark
METRO
Origin
China
HS Code
8465990000
Production Capacity
700sets/Year

Product Description

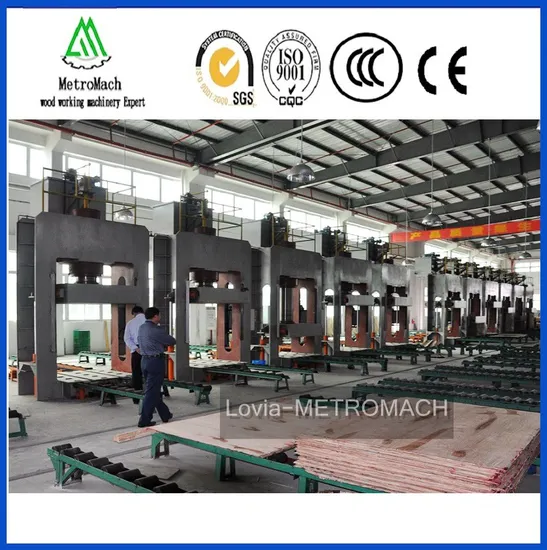

1. Cold Press machine, also know as Pre-press machine, is an essential equipment in the production of plywood,blockboard etc.
2. It helps to shorten the cycle time of hot press, and initial shaping of glued veneers.
3. Two working ways for option, one is cylinders on top, another is cylinders downsides.
4. Strict quality control, Good quality NO.1 standard steel plate, Top hydraulic unit system, Wuxi solid cylinders, no oil leakage.
Technical Parameters
Various pressure:400T/500T/600T even higher is available.
Pressing size: 3x6ft, 4x8ft, 5x5ft etc.
Take 500Ton 4x8ft plywood prepress for example:
Model BY814X8/4-IIZ
Nominal Gross pressure 5000KN
Direction of feeding Horizontal
Opening 1600mm
Main Cylinders 2xφ360mm x 1000mm, downsides
Size of workingbench 2700x1380mm
Unit pressure 16kgf/cm2
Allowed pressure <25Mpa
Control method Automatic pumping station
Machine weight 17000kgs
Chain roller conveyor Yes,optional

Packing and Shipping
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
