CE approved automatic rice wheat corn straw feed biomass sawdust bamboo wood pellet production making machine line

US$10,000.00-80,000.00 1 Set (MOQ)

Basic Info.

Model NO.
VIC
Usage
pellet making
Application
feed
Power Source
Electric
Heating and Ventilation Equipment Type
Air Duct
Epidemic Prevention Equipment
no
Blade Type
Straight Teeth
Computerized
Non-Computerized
Certification
QS, ISO9001:2008, CE
Condition
New
Warranty
12 months
CE,SGS
Yes
English Manual
Yes
Delivery Time
7-10days
Certificate of Origin
Issued by Chamber of Commerce
Payment Term
50% T/T as Deposit, The Balance Will Be Paid After
Warranty Time
1 Year
Installation and Adstustment
Yes
Transport Package
Wooden Box
Specification
CE
Trademark
VIC
Origin
China
HS Code
84793000
Production Capacity
6sets/Year

Packaging & Delivery

Package Size
590.00cm * 225.00cm * 225.00cm
Package Gross Weight
4500.000kg

Product Description

CE approved automatic rice wheat corn straw feed biomass sawdust bamboo wood pellet production making machine line Product Description
Introduction of the feed processing line:
This complete feed and wood processing line is our company's feed processing production line for animal and poultry farmers, frural cooperatives and feed manufacturers,also can be used for making wood pellet.
This feed production line can meet the needs of livestock, cattle, sheep and other full-price compound feed and grass feed.
The complete feed processing line includes crushing, mixing, granulating, cooling, screening and packaging and conveying equipment, complete technological process, with powerful functions, can meet the different needs of users.
This wood pellet making line can also make the pellets from sawdust, straw, stalk, thin wood chip and so on. It collects the material and mix, adjust the material to make one, small pellets. The technological process is successive, every unit performance is good, the aircrew structure is compact, Occupancy area is small, the energy consumption is low, it is convenient to operate it and maintain.
Working principle:
This feed processing line pulverizes various feed materials into powder particles by a pulverizer, and then sent to the mixer through a cyclone dust collector and an airlock by a fan.
The powder that does not need to be pulverized can be directly sent to the mixer through a screw conveyor.
Various raw materials are uniformly mixed in the mixer through the double spiral mixer, and then enter the silo through the screw elevator.
The materials in the silo are conveyed to the granulator by the adjustable speed feeder, and the finished particles are cooled and powdered by the cooling sieving machine.
After screening, the materials enter the packaging machine through a belt conveyor, and then packing pellet into bag and seal the bag to complete the entire production process.
Process Flow chart:
Hammer mill -- cyclone separator -- material silo -- feeder --VIC-400 pellet machine (water tank) -- vibrating screen -- Finished Products -- control box
The raw materials are feed stock, cover sawdust, twigs, straw, rice husks, and peanut shells and so on.
The range of diameter of pellets: 6-12mm, with pellet density of 1.1-1.3t/m³ and moisture content of ≤8%;
Total installed power: 43.36KW
2.Part machine date of the feed pellet making machine line
No. Name Model Quantity Power
(kw)
Remark
1 Elevator LS160 1 4 Transfer materials from mixer to silo
2 Silo 1m³ 1 Storage raw materials
3 Feeder LS160 1 0.75 Evenly feed-in
4 Pellet machine VIC-400 1 30 Frequency control, CYCLO
5 Rotary screener LQ70 1 5.15 With dust collector
6 Belt conveyor QB380 1 2.2
7 Air compressor 0.6mpa,discharge rate >>0.17m3/m
8 Pellet packing machine DCS50 1 1.26
9 Control box (MCC) 1
Total 43.36kw

3. Main machine introduction and details of the feed processing line:
Equipment flow chart
Hammer mill
Introduction:
This crush machine can crush all kinds feed materials and straws into powder directly.
It is small investment, low energy consumption, high productivity, high economic benefit, the crushed sawdust can be put into pellet mill directly.

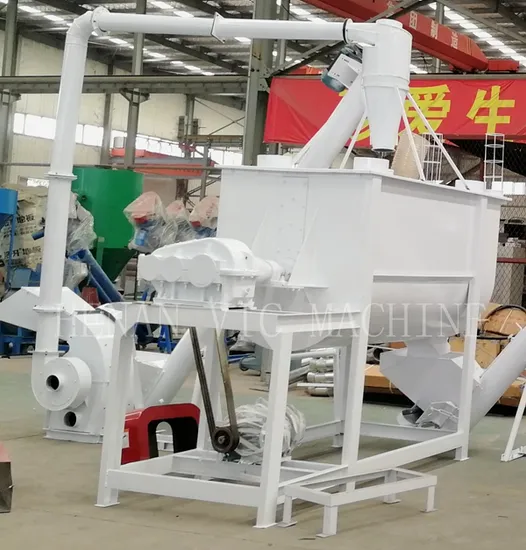

Mixer with cyclone dust collector and an airlock
Silo with screw feeder

Feed Pellet making machine
Vibrating screen with cooling system and skirt belt conveyor
Other type cooler
Pellet weighing and packaging machine
Final product
We can make 500kg/h to 12t/h pellet making line, if you need, pls contact us!
Moisture of raw material Diameter of raw material Pellet size
10%-15% 2-3mm 2,4,6,8,12mm

4.Our factory:
Introduction for the pellet making line
This line is a Turn-Key factory which includes crush machine, dryer machine, pellet machine, packing machine and so on. The moisture of the raw material is about 10-15% and the diameter is about 2-3mm. According to the materials of clients, we can choose the proper machines for the line. It can make 2mm, 4mm, 6mm, 8mm or 12mm sawdust pellets or feedstuff pellets.
