Nylon6 Polyamide Dipped Tire Cord Fabric for Tire

Product Description

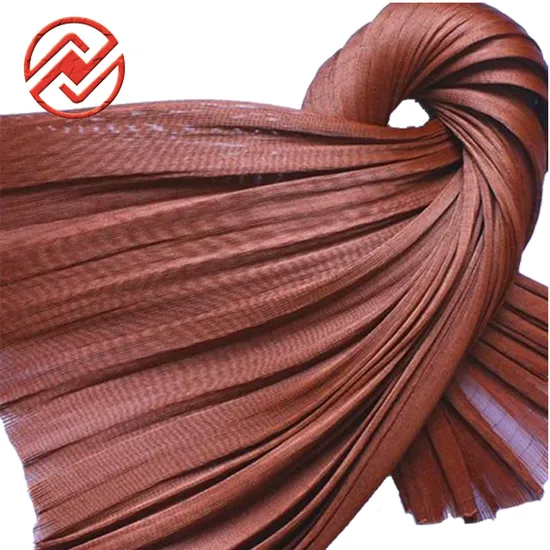

Dipping tire fabrics for tire
Nylon 6 dipping tire fabrics have the characteristics of high strength, fatigue resistance, impact resistance and high adhesion strength.
1. Dipping tire fabrics with multi-folded yarn are appropriate for the production of engineering tire, agricultural automobile, tractor and tricycle tire and air bag restraint system.
2. Dipping tire fabrics with single yarn are widely used in the production of tire of motor, bicycle, electrocar and moped.
Technical Specification
1170dtex(1050D) dipping tire fabrics

Item & Unit\level\linear density		700dtex × (630D/1)
		Superior quality	First-level	Qualified
Breaking strength ≥	N/root	48	46	44
17N(1.73kg)rated elongation	%	7.5±1.0	7.5±1.5	7.5±1.5
Adhesive strength≥	N/cm	43	39	35
Attached cement quantity	%	4.2±1.0	4.2±1.2	4.2±1.5
Breaking strength CV	%	6.0	7.0	8.0
Breaking elongation CV	%	7.5	9.0	11.0
Breaking elongation	%	19.0±2.0	19.0±2.0	19.0±2.0
Moisture content ≤	%	0.8	0.8	0.8
Twist Z	twist/cm	260±15	260±15	260±15
Diameter	mm	0.23±0.03	0.23±0.03	0.23±0.03
Dry heat shrinkage ≤	%	4.0	4.0	4.0

Item & Unit\levle\linear density		1170dtex × 1(1050D/1)
		Superior quality	First-level	Qualified
Breaking strength≥	N/root	92	87	82
33N rated elongation	%	7.0±0.8	7.0±1.0	7.0±1.5
Adhesive strength≥	N/cm	60	55	50
Attached cement quantity	%	4.2±0.8	4.2±1.0	4.2±1.0
Breaking strength CV≤	%	4.5	6	7.5
Breaking elongation CV≤	%	5.5	7.5	9.5
Breaking elongation	%	20±2	20±2	20±2
Moisture content≤	%	0.8	0.8	0.8
Twist	twist/cm	200±15	200±15	200±15
Dry heat shrinkage≤	%	4.0	4.0	4.0

Nylon"6" dipping tire fabrics

Item & Unit \ level \ variety			1870dtex × 1
			Superior quality	First-level	Qualified
Breaking strength ≥		N/root	132	127	123
Definite elongation	44N	%	8±0.8	8±1.0	8±1.0
	33N		--	--	--
	22.6N		--	--	--
Adhesive strength ≥		N/cm	83	78	74
Breaking strength irregularity ≤		%	3.5	4.0	5.0
Breaking elongation irregularity ≤			5.5	6.0	7.0
Attached cement content			4.20±1.00	4.20±1.20	4.20±1.20
Breaking elongation			20.0±2.0	20.0±2.0	20.0±2.0
Moisture content ≤		%	0.8	0.8	0.8
Diameter		mm	0.5±0.03	0.5±0.03	0.5±0.03
Twist	First twist(z)	twist/cm	160±10	160±10	160±10
	Repeated twist(s)
Dry heat shrinkage ≤		%	4.0	4.0	4.0

Item & Unit\level\variety			1400dtex × 1			930dtex × 1
			Superior quality	First-level	Qualified	Superior quality	First-level	Qualified
Breaking strength ≥		N/root	103	98	93	69	67	65
Definite elongation	44N	%	--	--	--	--	--	--
	33N		7±0.8	7±1.0	7±1.0	--	--	--
	22.6N		--	--	--	7.5±0.8	7.5±1.0	7.5±1.0
Adhesive strength ≥		N/cm	69	64	59	54	49	44
Breaking strength irregularity ≤		%	3.5	4.0	5.0	4.0	4.5	5.0
Breaking elongation irregularity ≤			5.5	6.0	7.0	6.0	6.5	7.0
Attached mess content			4.20±1.00	4.20±1.20	4.20±1.20	4.20±1.00	4.20±1.20	4.20±1.20
Breaking elongation			20.0±2.0	20.0±2.0	20.0±2.0	20.0±2.0	20.0±2.0	20.0±2.0
Moisture content ≤		%	0.8	0.8	0.8	0.8	0.8	0.8
Diameter		mm	0.43±0.03	0.43±0.03	0.43±0.03	0.32±0.03	0.32±0.03	0.32±0.03
Twist	First twist(z)	twist/cm	190±10	190±10	190±10	210±15	210±15	210±15
	Repeated twist(s)
Dry heat shrinkage ≤		%	4.0	4.0	4.0	4.0	4.0	4.0

Item		Unit	Specification index
		dtex/ply	2100/2			1870/2
		level	Superior quality	First-level	Qualified	Superior quality	First-level	Qualified
Breaking strength ≥		N/root	313.6	303.8	294.0	279.3	269.5	259.7
100N		%	9.5±0.5	9.5±0.8	9.5±1.0	--	--	--
88.2N	Rated load		--	--	--	9.5±0.5	9.5±0.8	9.5±1.0
66.6N	Elongation		--	--	--	--	--	--
44.1			--	--	--	--	--	--
Adhesive strength ≥		N/cm	176.4	166.6	156.8	166.6	156.8	147.0
Breaking strength CV		%	3.8	5.0	6.3	3.8	5.0	6.3
Breaking elongation CV		%	6.3	7.5	8.8	6.3	7.5	8.8
Attached mess content		%	4.5±1.0	4.5±1.0	4.5±1.0	4.5±1.0	4.5±1.0	4.5±1.0
Breaking elongation		%	23.0±2.0	23.0±2.0	23.0±2.0	23.0±2.0	23.0±2.0	23.0±2.0
Diameter		mm	0.78±0.03	0.78±0.04	0.78±0.05	0.78±0.03	0.78±0.04	0.78±0.05
Twist	First twist(z)	twist/cm	320±15	320±15	320±15	320±15	320±15	320±15
	Repeated twist(s)
Dry heat shrinkage		%	6.0	6.5	7.5	6.0	6.5	7.5
Moisture content		%	1.0	1.0	1.0	1.0	1.0	1.0

Item		Unit	Specification index
		dtex/ply	1400/3			1400/2
		level	Superior quality	First-level	Qualified	Superior quality	First-level	Qualified
Breaking strength ≥		N/root	313.6	303.8	294.0	215.6	205.8	196.0
100N		%	9.5±0.5	9.5±0.8	9.5±1.0	--	--	--
88.2N	Rated load		--	--	--	--	--	--
66.6N	Elongation		--	--	--	9.5±0.5	9.5±0.8	9.5±1.0
44.1			--	--	--	--	--	--
Adhesive strength ≥		N/cm	176.4	166.6	156.8	147.0	137.2	127.4
Breaking strength CV		%	3.8	5.0	6.3	3.8	5.0	6.3
Breaking elongation CV		%	6.3	7.5	8.8	6.3	7.5	8.8
Attached mess content		%	4.5±1.0	4.5±1.0	4.5±1.0	4.5±1.0	4.5±1.0	4.5±1.0
Breaking elongation		%	23.0±2.0	23.0±2.0	23.0±2.0	23.0±2.0	23.0±2.0	23.0±2.0
Diameter		mm	0.78±0.03	0.78±0.04	0.78±0.05	0.65±0.03	0.65±0.04	0.65±0.05
twist	First twist(z)	twist/cm	320±15	320±15	320±15	370±15	370±15	370±15
	Repeated twist(s)
Dry heat shrinkage		%	6.0	6.5	7.5	6.0	6.5	7.5
Moisture content		%	1.0	1.0	1.0	1.0	1.0	1.0

This only the common size, the other size also can be produced as the requirement of costomer.

Applications: Rubber Hose, Tyre, Conveyor Belt.
