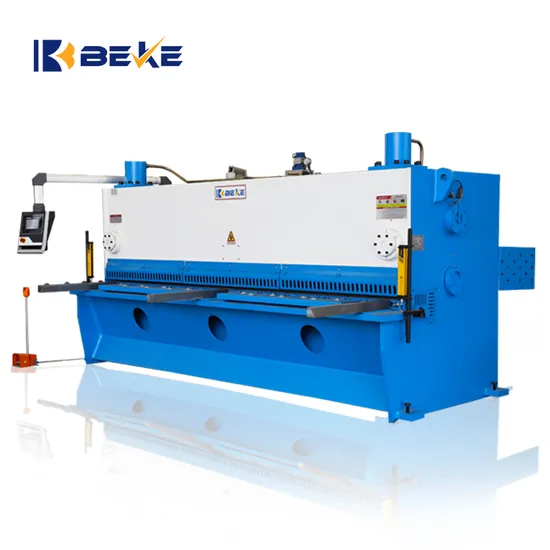

Best QC11K Shearer Guillotine Delem System Hydraulic 3200mm Cutting Machine

US$14,600.00
1-2 set
US$13,600.00
3+ set

Basic Info.

Model NO.
DAC360T 6*3200
Certification
CE, ISO 9001:2000, ISO 9001:2008
Condition
New
Warranty
2 Years
Model
QC11K 6*3200
CNC System
Delem Dac360t
Main Motor
Germany Siemens
Hydraulic Valve
Germany Bosch-Rexroth
Oil Pump
USA Sunny
Ball Screw and Linear Guide
China Taiwan Hiwin
Transport Package
Wooden Box or Container Directly
Specification
3730*1700*1620mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Production Capacity
50 Set/Month

Product Description

Product Description
Technical Data
Item Uint No.
Cutting Capacity mm 6
Cutting Length 3200
Column distance 3420
Throat depth 150
Blade length 3300
Material tensile strength N/mm² 450
Cutting Angle degree 0.5-1.5
Main motor power kw 7.5
Back Gauge Distance mm 600
Speed mm / sec 100
Sliding Front Arms Quantity pcs. 4
Length mm 800
Weight kg 6300
Overall Dimension Length
mm
3730
Width 1700
Height 1620
The rlling guide structure is supported by three points;
The shear Angle of the tool holder can be adjusted in the range;
Shear travel can be adjusted arbitaril;
Manual lfing of the retaining function;
The inside of the walboard is equipped witha lubricating oil pump;
The standard E21S numerical control system controls the cut count and the post-block;
A variety of numerical control systems such as DAC360 can be selected.
Now the shear can provide variety of choices and features for the products and function, to realize the optimal Shear
properties and solutions. Multilingual display;The material retaining supports a variely of shaft control modes such as servo molor, two speed AC motor and frequency converter; Knife edge clearance, shear angle, shear length and shear pressure control; Automatic calculation of shear parameters based on material table;Manual, single step and program modes are optional; The system can oontrol the X-axis resolution accuracy at rear retaining material to 0.01mm.
