AC90 -40c 600V Copper Conductor XLPE Insulation 14 to 2 AWG Aluminum Interlock Armoured CSA Cable

US$0.02-5.00 1 Meter (MOQ)

Basic Info.

Model NO.
AC90
Current
DC & AC
Insulation Material
XLPE
Sheath Material
Armored
Material Shape
Round Wire
Wire Core Material
Copper Conductor
Certification
ISO, CCC, CE, CSA
Model
AC90
Brand
Feiya
OEM/ODM
Accepted
Voltage Rating
600V
Other Service
Can Be Customized
Core
Multicore
Armor
Interlocked Aluminum Armor
Transport Package
Wooden Box Packing or Pallet Shipping Containers
Specification
14AWG-2000KCMIL
Trademark
Fengda
Origin
Tianjin, China
HS Code
8544492100
Production Capacity
6000000meters/Year

Product Description

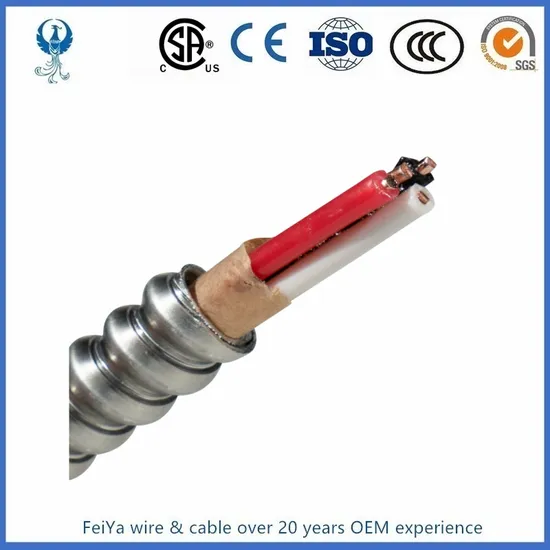

Product Description Type AC90 600V -40C Interlocked Aluminum Armoured Electric Cable
Rated at 90°C wet or dry Excellent crush resistance Provides long service life Cost effective alternative to installations in conduit Meets cold bend and impact tests at (-40°C)Application:For concealed wiring in dry or wet locations For exposed wiring in dry or wet locations
For exposed and wiring in dry, locations where subjected to corrosive action if suitable for corrosive conditions encountered
For exposed wiring where subjected to the weather
For use in ventilated, Non-ventilated and ladder-type cable trays in dry or wet locations
For direct earth burial (with protection as required by inspection authority)
For service entrance above or below ground
AWG size Isulation Thickness Approximate Diameter Net Weight
No./size bare bonding conductor size mm mm KG/KM
4/14 14 0.76 13.3 203
3/14 14 0.76 12.5 170
2/14 14 0.76 12.0 145
4/12 14 0.76 14.3 260
3/12 14 0.76 13.4 215
2/12 14 0.76 12.8 176
4/10 12 0.76 15.6 355
3/10 12 0.76 14.6 290
2/10 12 0.76 13.9 233
3/8 10 1.14 19.1 505
3/6 8 1.14 21.3 705
3/3 6 1.14 25.4 1195
3/2 6 1.14 26.9 1410
Armor interlocked aluminum armor
Groud (Bonding core) conductor Bare Copper Bonding conductor
Conductor copper conductor
Insulation Cross-Linked Polyethylene- XLPE
Temperature range - 40°C to +90°C
compliances CSA Spec. C22.2, No. 51 - Armoured Cables CSA -40°C Cold Temperature Rating
Detailed Photos
FAQ Q: Can I have a sample order?
A: yes, we welcome sample orders to test and check quality.
Q: Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty on our products.
Q:Can I visit your factory before I place an order?
A:Yes, of course. I'll show you around our whole plant and equipment.
Q:Can I customize the product?
A:Of course, we will customize the exact product according to the needs of each customer.
Q;How to pay after order?
A:T/T, thirty percent down payment and the rest before shipment.
