1ton 2ton 3ton 5ton CE CCS Approved Mini Marine Lifting-Equipment Hydraulic Telescopic Knuckle Boom Offshore Ship Deck Crane for Hot Sale

Product Description

Product Description

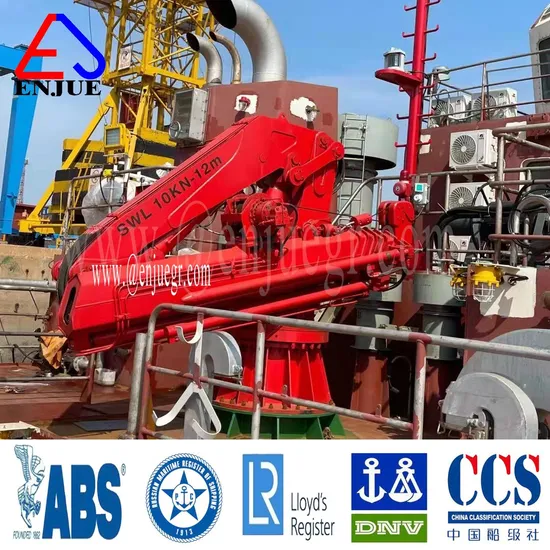

Telescopic Knuckle Boom Marine Deck Crane
OEM and ODM accept
Slewing angle:0-400°
Marine deck cranes are classified according to their appearance: straight boom cranes, folding cranes, telescopic cranes, telescopic knuckle boom cranes.
Telescopic knuckle boom cranes, because of its lifting arm can be telescopic, expanding the working radius, but also can be folded, saving the deck space and widely praised.
Applications:
Telescopic knuckle boom cranes are widely used in ships, factories, workshops and other places with a wide range of working radius and insufficient space.
Mini Telescopic Knuckle Boom Marine Deck Crane
SWL:0.1Ton-5Ton
Detailed Photos

Product Parameters

30KN×17m Hydraulic foiding boom telescopic slewing crane
Safe working load		30kN	Environmental temperature	-10ºC-45ºC
lifting height		20m	Motor specification	Y160L-4-H
lifting speed		10M/min	Motor power	20KW
Rotation speed		0..6r/min	Motor duty system	S6-40%
Rotation angle		359°(Incomplete rotation)	Motor power source	380V /5HZ/3P
Wooking radius		2.5~17m	Protection class	IP56
luffing time		60s	Insulation class	F
Allowable tilt angle	Heel	≤5°
	Trim	≤2°
Protection level of electric control box		IP23
Electic control box controls voltage		220V/50HZ/1P

Note: The parameters of this table are conventional configurations, and can be redesigned according to the actual working conditions of users.
Certifications
Company Profile
Our company provides the service of refitting the container spreader crane into grab-type ship loader for bulk material loading and unloading. Also corollary equipment----dust trap hopper system building.
Originally, the container spreader crane can only hang the container spreaders, after our professional refitting ,it becomes into a grab-type ship loader. After refitted, the crane can be used with two type of grabs - wireless remote control gab and electric hydraulic grab .So it can load and unload many kinds of bulk materials, such as grain, coal,sand, fertilizer and so on. Thereby, the refitted equipment increases the operation rate of the container spreader crane.
Focus on lifting equipment production, various specifications, can be customized.

FAQ
Q1: What's the information should I provide when inquiry?
A: Thanks for your question. The more information you provide, the more accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
Q2: Is your products customized?
A: Yes, because of the different working condition, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
Q3: How can we install the crane?
A: Our senior engineer can be your side to provide the installation guide service and training.
Q4: Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q5: How about your payment terms?
A: we accept T/T and L/C at sight.

---
