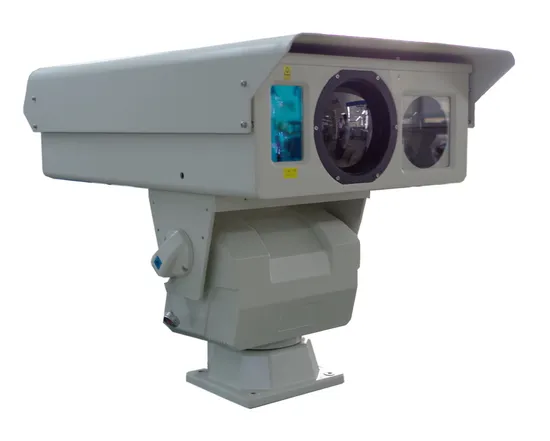

Infrared PTZ Thermal Security Camera 60X Optical Zoom

Product Description

Product Description Key Benefits:
Unique AS + DOE advanced optical continuous zoom design and 3CAM high precision optical machine design, stable and smooth zooming, which to conduct to large-scale searching and long-range recognition Excellent non-uniform image correction technology with good image uniformity and dynamic range
SDE image detail enhancement technology, image smooth and noiseless, a variety of pseudo-color and hot black hot white polarity image mode switching, adaptability, easy to find low-contrast hidden targetse. Application Oilfield, river and lake, expressway, railway, costal defense, harbor, airport, forest fire prevention, safe city.
Product Parameters

Model	TVC4307-1920	TVC4510-2030	TVC4515-2076
Detection	Vehicle: 6500m Human: 2500m	Vehicle: 8600m Human: 3400m	Vehicle: 13000m Human: 4800m
Identification	Vehicle:1800m Human: 700m	Vehicle: 2400m Human: 900m	Vehicle: 3400m Human: 1300m
Thermal sensor	VOx uncooled detector, 324*256(640*512 optional); 7.5um-14um spectral response, 50mk NETD, 2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;
Thermal lens	21mm~105mm	21mm~105mm	31mm~155mm
	3CAM precision mechanizing(auto focus optional)
FOV	13°~4.3°	18°~3.4°	11.2°~2.2°
Visible camera	1/2.8'' Sony CMOS, 2.1 mega pixels, 1920*1080, auto B/W to color at 0.001lux; ICR optical filter; H.264
Lens	4.7mm~94mm, mega pixels, auto focus	12~320mm, mega pixels, motorized zoom and focus, auto iris	25~750mm, mega pixels, motorized zoom and focus, auto iris
Housing	Aluminum alloy housing, double window, water-tight, IP66 rated
Load duty	30kg		50kg
PT	Pan: 360 o continuous; tilt:+40°~-75°		Pan: 360 o continuous; Tilt: +45°~-45°
Rotation speed	Pan:0.01~60°/S; tilt: 0.01~30°/S		Pan: 0.01~30°/S; tilt: 0.01~15°/S
Extended function	Real time display of orientation and angle; zero correction; angle back sending; presets, patrol and scanning
Video	PAL(thermal), H.264(visible), 2 video output
Interface	1*BNC, 1*RJ45, 1*AC24, 1*RS485(RS422 optional) Optional: IP box, 1*RJ45 for all video outputs and control
Protocol	Pelco-D/P; 2400/4800/9600/19200(selectable baud rates)
Anti-lighting	4000V(power supply); 2000V(communication)
Power supply	AC24V±10%,50Hz,5A
Ingress Protection	IP66
Working temp.	-25°~+55°(-40° optional)
Weight	≤50kg(PT included)
Dimension	570mm×340mm×580mm(L×W×H)

Customer Feedback Company Profile Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.

FAQ Q1. Could you provide OEM&ODM service?
Yes, We provide the advanced monitor products, technical solution and professional premium service world-wide, offer OEM&ODM service. Also our R&D team have rich experience in ODM&OEM.
Q2.Do you offer free sample?
A: Yes, we could offer the sample , but need some deposit before shipping.
Q3. Are you manufacturer or treading company?
We are a manufacturer located in Shandong Province, China, you are very welcomed to visit our factory.
Q4. How does you ensure the quality of products
All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, functional test, burn-in test, appearance inspection.
Q5.How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
Q6.Technical Support
We have strong R&D team to support our customers, and if you have any question for the technology of our products, please email to us, reply will be sent to you immediately;
Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.

---
