US$99.00-99,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Tool Holder
4 station tools
Controlling Mode
Artificial
Certification
CE, ISO 9001
max. swing diameter
1630mm
max. workpiece length
2000mm
spindle bore diameter
105mm or 130mm
Transport Package
Wooden Pallet
Specification
CW62163C/2000
Production Capacity
50 Units Per Month
Product Description

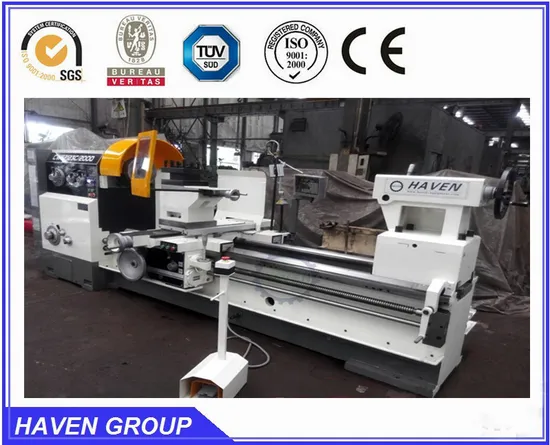

Mechanical Horizontal Lathe Machine CW62163C/2000
Main Features:
This series horizontal lathe is a new-designed product, which are based on 63C series lathe according to the market's demand. The lathe is especially suitable for machining light-duty big disc work pieces and big diameter shaft work pieces.It including: CW61/2103C, CW61/2123C,CW61/2143C,CW61/2163C,CW61/2183C.The distance between centers are 1500mm, 2000mm, 3000mm, 4500mm, 6000mm.
Main Specification:
| Item | Unit | Spec./Model |
CW61103C
CW62103C | CW61123C
CW62123C | CW61143C
CW62143C | CW61163C
CW62163C | CW61183C
CW62183C |
| Swing in bed | mm | 1030 | 1230 | 1430 | 1630 | 1830 |
| Swing in gap | mm | 1200 | 1400 | 1600 | 1800 | 2000 |
| Swing over cross slide | mm | 700 | 900 | 1100 | 1240 | 1440 |
| Distance between centers | mm | 1500,2000,3000,4500,6000 |
| Length in gap from face plate | mm | 380 |
| Spindle nose | | C11 or D11 |
| Spindle bore | mm | 105,130 |
| Spindle speed | rpm/steps | 10-800/18 7-576/18 6-480/18 |
| Cross slide travel | mm | 615 715 815 915 |
| Top rest travel | mm | 225 300 |
| Rapid traverse | mm/min | Z:3200, X:1400 |
| Quill diameter | mm | 120 |
| Quill travel | mm | 270 |
| Quill taper | | MT6 |
| Bed width | mm | 610 |
| Metric threads | mm/kinds | 1-240/53 |
| Inch threads | tpi/kinds | 30-2/31 |
| Module threads | mm/kinds | 0.25-60/42 |
| Diametral pitch threads | tpi/kinds | 60-0.5/47 |
| longitudinal feeds | mm/r | 0.07-16.72 |
| ain motor power | kw | 0.04-9.6 |
| Main motor power | kw | 11 |
>>
