Descriptions

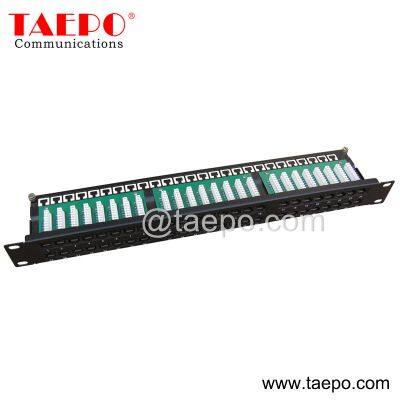

A "19 inch server rack 1U 48 port CAT5E RJ45 network patch panel with cable bracket" is a piece of equipment used in networking and structured cabling installations.
Here’s a breakdown of what each component of the term typically refers to:
19 inch server rack: This refers to the standard width of the equipment, which is 19 inches (approximately 48.26 cm). Server racks are designed to hold various IT and networking equipment in a standardized form factor.
1U (1 Rack Unit): This indicates the height of the equipment in rack units. One rack unit is equal to 1.75 inches (44.45 mm) in height. Therefore, a 1U equipment occupies 1.75 inches of vertical space within the server rack.
48 port CAT5E RJ45 network patch panel:
48 port: This specifies the number of ports available on the patch panel. Each port is where a network cable (typically CAT5E, in this case) can be terminated and connected.CAT5E: This indicates the category of Ethernet cable supported by the patch panel. CAT5E (Category 5e) is suitable for Gigabit Ethernet networks and supports speeds up to 1000 Mbps.
RJ45: This refers to the type of connector used for Ethernet cables, which is standard for network connections.
Cable bracket: This typically refers to a bracket or management feature on the patch panel that helps organize and manage the incoming and outgoing cables. It may include features like cable management bars or loops to keep cables neatly routed and secured.
Main Features
Termination: The patch panel allows for the termination of up to 48 Ethernet cables (CAT5E) using RJ45 connectors. These cables are typically connected to devices such as computers, servers, switches, or other networking equipment.
Centralized Connections: It serves as a centralized point where network connections from various locations (e.g., wall outlets, patch cords) can be terminated and easily managed.
Rack Mountable: Designed to fit into a standard 19-inch server rack, the patch panel occupies 1U of vertical space. This standardization allows for efficient use of rack space and easy integration with other rack-mounted equipment.
Cable Management: The included cable bracket or management features help organize and route cables neatly within the rack, reducing cable clutter and aiding in maintenance and troubleshooting tasks.
In summary, a "19 inch server rack 1U 48 port CAT5E RJ45 network patch panel with cable bracket" is a critical component in networking infrastructure, providing a structured and organized way to manage network connections within a server rack environment. It facilitates efficient network operations, maintenance, and scalability in data centers, server rooms, and other networking installations.
Schematic Diagrams
Packing Pictures
Order Data
| Item NO | Descriptions |
| TP-5314-48C5EU | 48-port patch panel, CAT5E, RJ45, UTP, 19", 1U |
| TP-5314-48C6U | 48-port patch panel, CAT6, RJ45, UTP, 19", 1U |
>>
